KiCad 9.0 |
I_can_solder.kicad_pcb

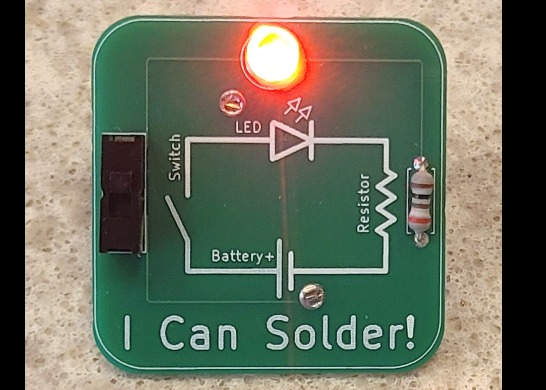

This is a simple soldering kit suitable for a first-time project. It allows the builder to solder component leads, larger battery holder clips and optionally solder a larger piece of metal (the pin backing). Directions can be found at https://nf7z.net/i-can-solder-kit/.
To make the project more interesting, I used a slow color-changing LED (https://www.amazon.com/dp/B01C19END2) or this one from adafruit.
Here are the exact parts from DigiKey: https://www.digikey.com/en/mylists/list/3KYU5TBYJN
I_can_solder.kicad_pcb
