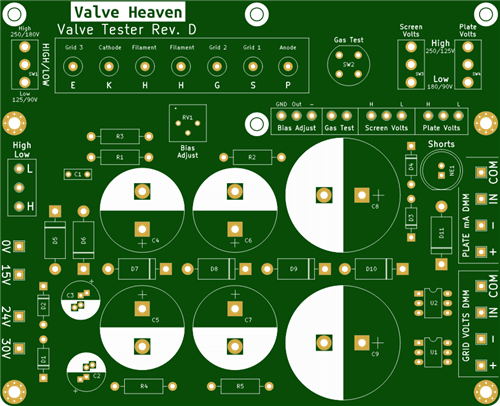

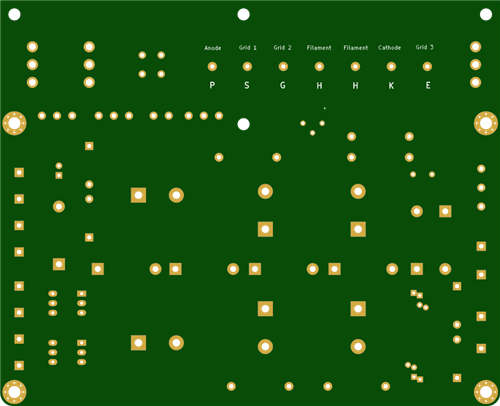

Valve heaven mainboard
This is the PCB you can use to build the valve tester here
https://valveheaven.com/2015/03/an-inexpensive-easy-to-build-diy-valvetube-tester/
Despite being easy to build this is extremely versatile, especially if you have a bench dc supply to cover different filament voltages
I can claim no credit as this was produced by someone else. I found a copy of this PCB on PCBWAY which required some tweaking, which I did.

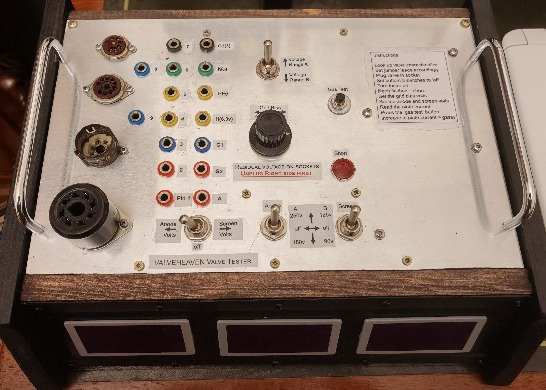

I know this board works as I used it for my own build, which you can see in the picture.
Valve heaven mainboard
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
