Jared NearFarMedia
JAPAN • + Follow
Edit Project
Components
|
51ohm 1/4W Resistor |
x 1 | |
|
56ohm 1/4W Resistor |
x 1 | |
|
240ohm 1/4W Resistor |
x 1 | |
|
10uF 35V Electrolytic Capacitor |
x 2 | |
|
2-way 2.54mm header pins |
x 2 | |
|

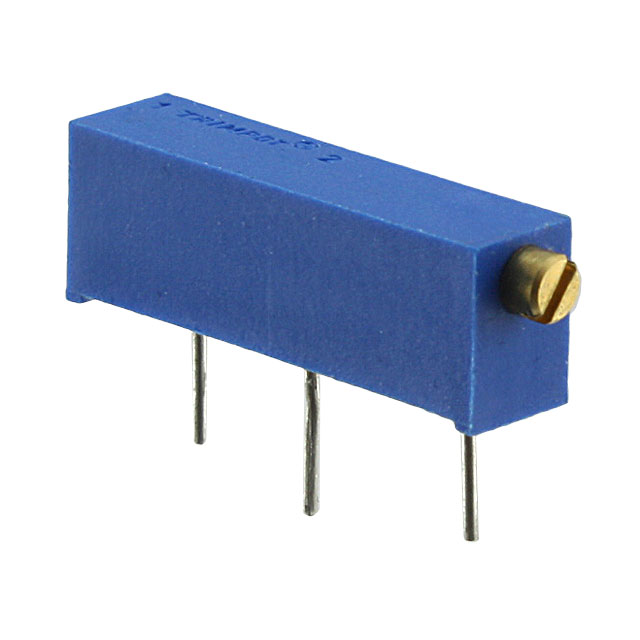

3006P-1-104LFBourns Inc.
|
x 1 | |
|
7101SD9ABEC&K
|
x 1 |
Tools, APP Software Used etc.
|
DiptraceDiptrace
|
Description
HP 5304A Feed Forward Simulator Board K05-5340A
This is a reproduction of the 'Feed-Forward Simulator', part number K05-5304A as mentioned in the HP 5340A Frequency Counter service manual.
It is used in the adjustment process, and simply plugs into the PCB as described in the manual.
Parts used are not critical as long as they are the correct value (capacitors can be rated higher voltage than 35V if that's what you have on hand) and they physically fit the PCB. I suggest using 1% metal film resistors for their high precision and low temperature coefficient.
Schematic and Layout
Mar 15,2023
444 views
HP 5304A Feed Forward Simulator Board K05-5340A
This is the 'Feed Forward Simulator' used in adjusting the HP 304A 18GHz frequency counter.
444
0
0
Published: Mar 15,2023
Download Gerber file 2
BOM(Bill of materials)
Purchase
Donation Received ($)
PCBWay Donate 10% cost To Author
File Last Updated: 2023/03/15 (GMT+8)
File update record
2023-03-1518:31:00
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a shared platform and we are not responsible for any design issues.
Copy this HTML into your page to embed a link to order this shared project
Copy
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
