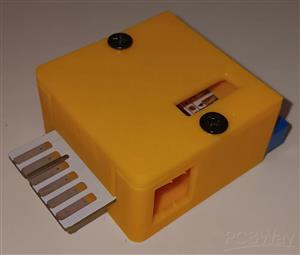

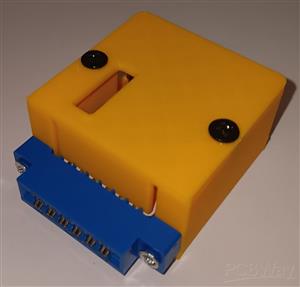

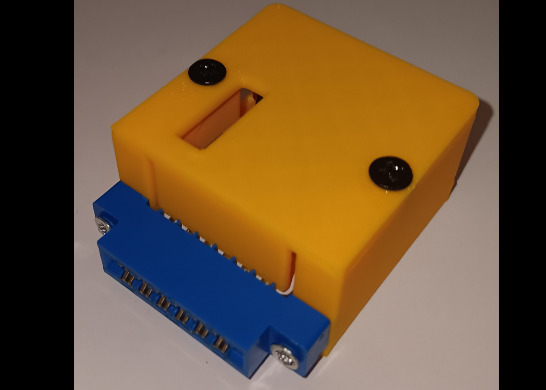

Tape64 V2 Case for Commodore 64
This is a case for the Tape64 V2 device for the Commodore 64, which emulates a datacorder. The electronics is also a shared project on PCBWay and can be found here
Tape64 PCB
https://www.pcbway.com/project/shareproject/_DIY__TAPE64__by_Metallic__COMBO_V2.html

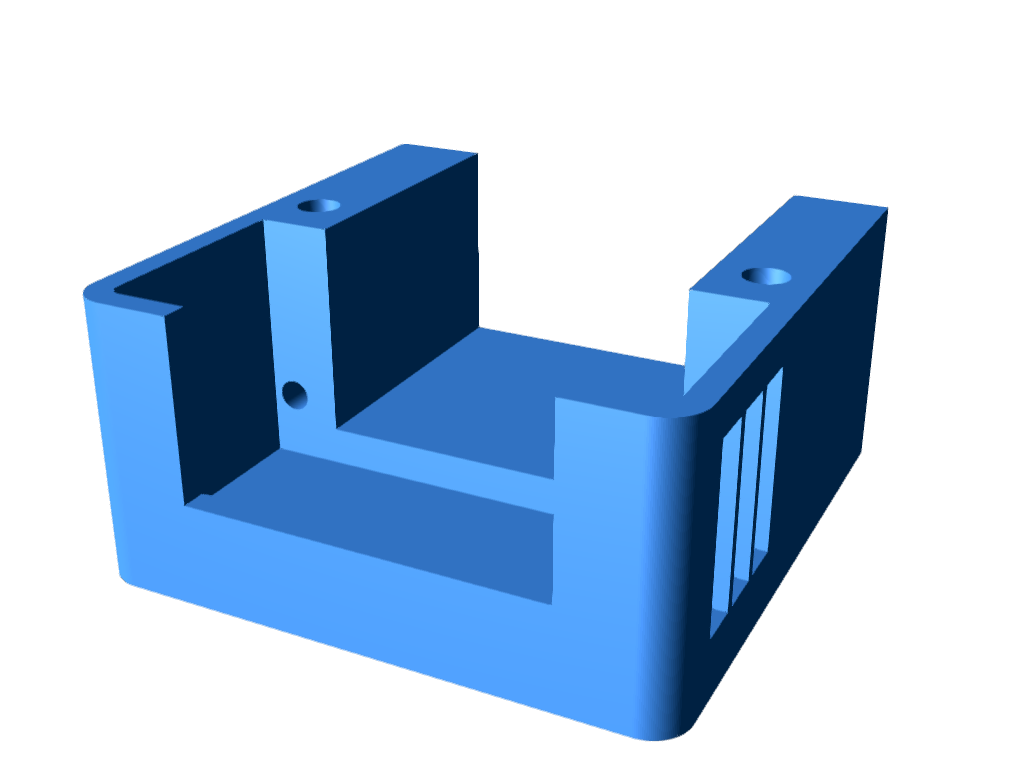

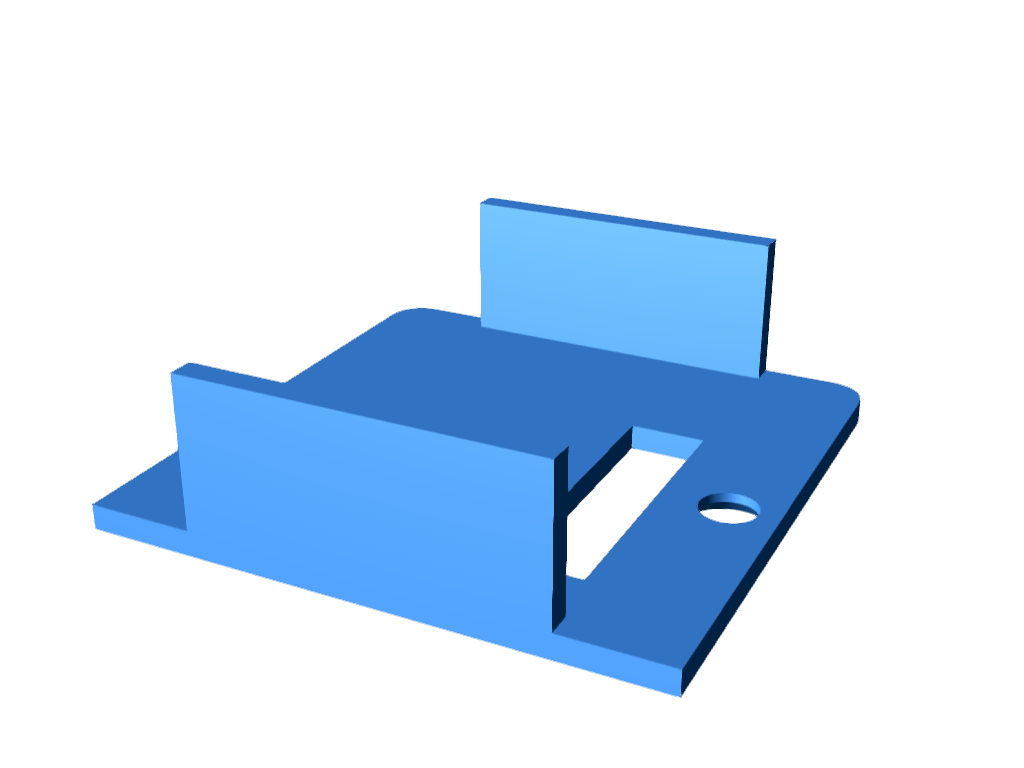

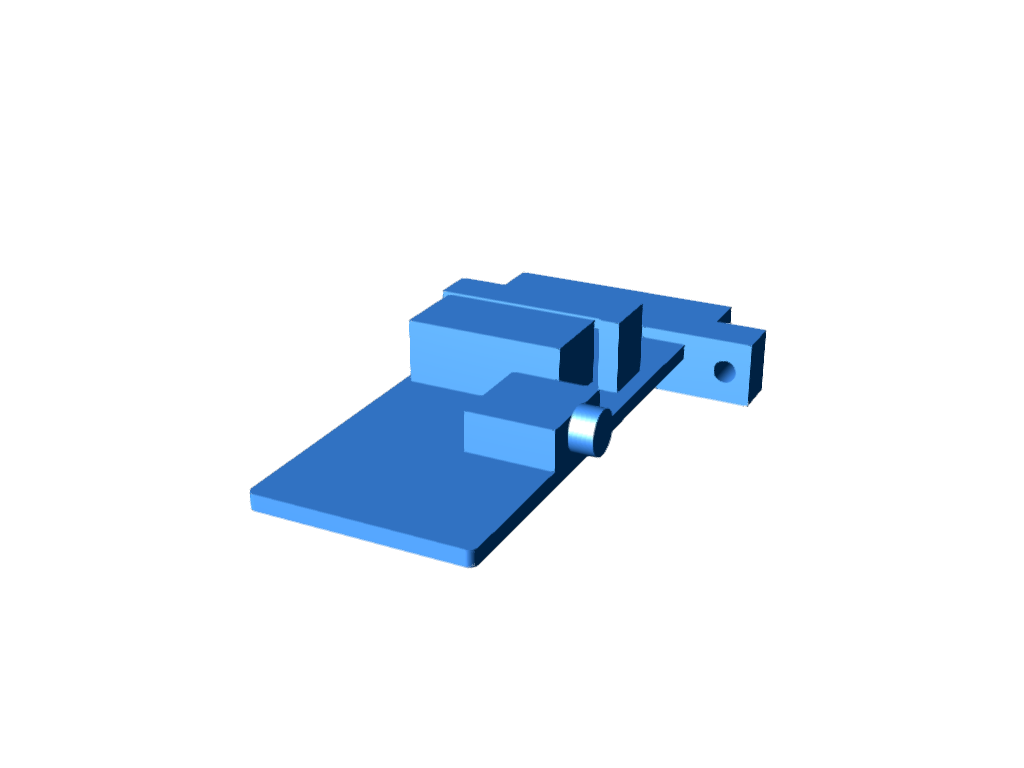

Note: You do not need to order the printout of the PCB, only the case bottom and top. The PCB CAD file is purely used for reference. As it's possible to assemble this PCB slightly differently, you'll need to ensure the edge connector is aligned with the PCB in the same manner as shown in the STL file.
Assembly
Snip out the supports for the microphone window using side cutters
Recommended screws for the lid are 3.5mm self tapping. Max length 12mm
Recommended screws for the edge connector are 2.5mm self tapping. Max length 15mm
Tape64 V2 Case for Commodore 64
