Tools, APP Software Used etc.
|
Shapr3D |
Description
Switch 2 SP (floating clamshell) v2

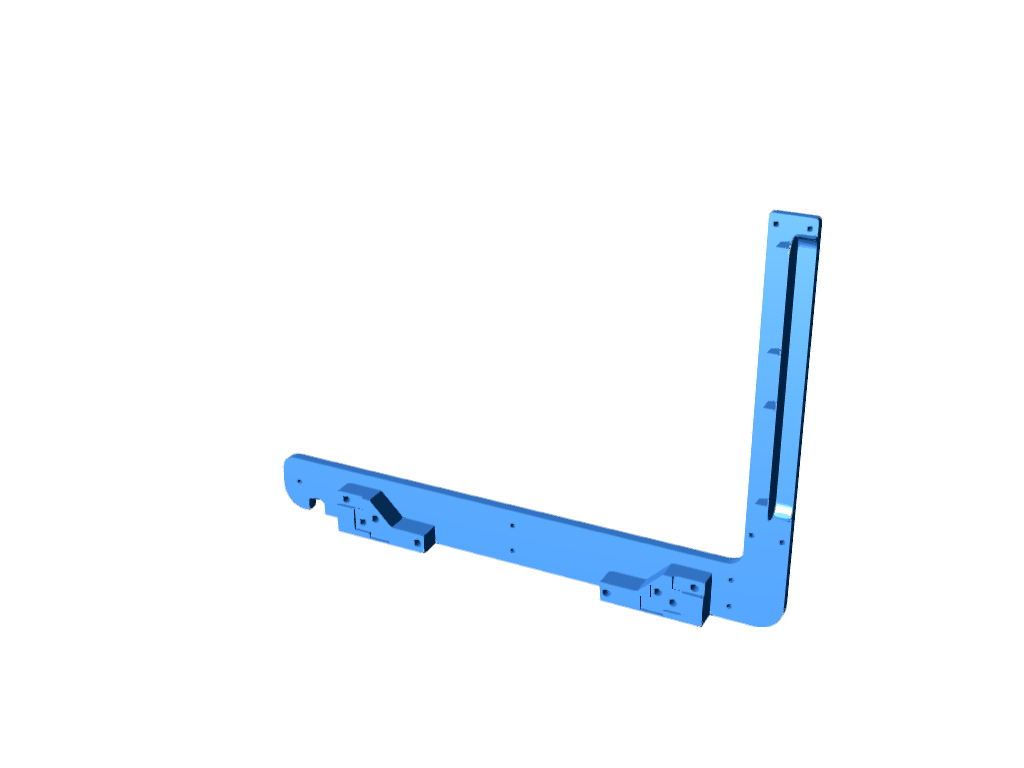

FloatingCradleTOP
Quantity x1
PLA

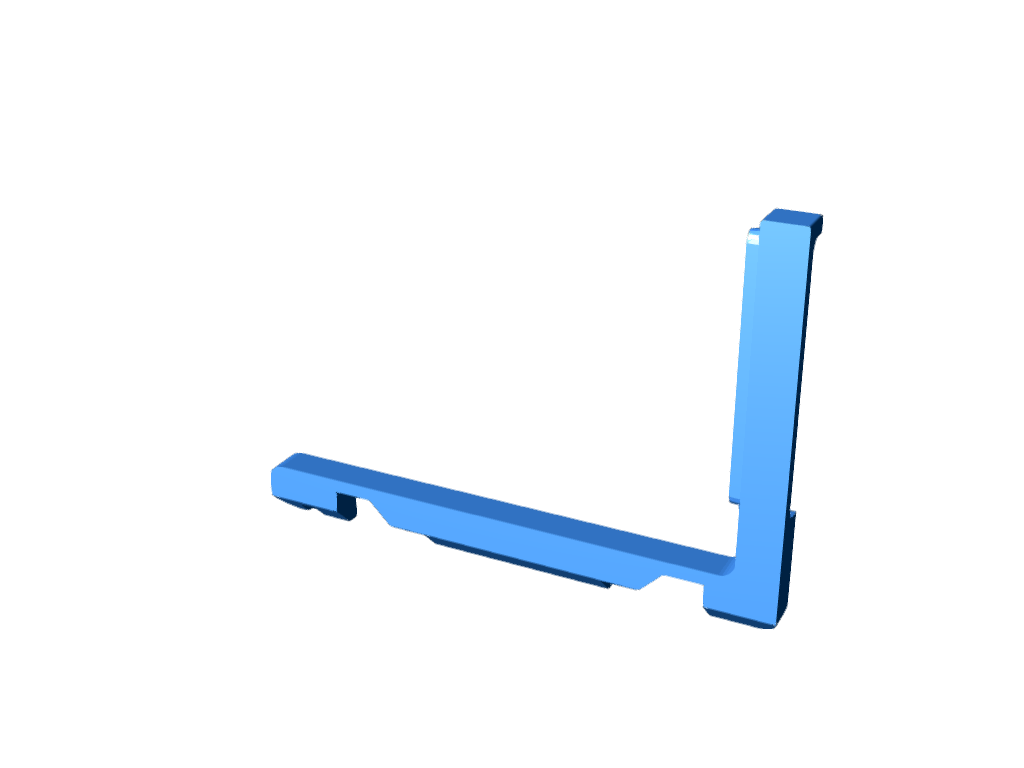

FloatingCradleBOTTOM
Quantity x1
PLA

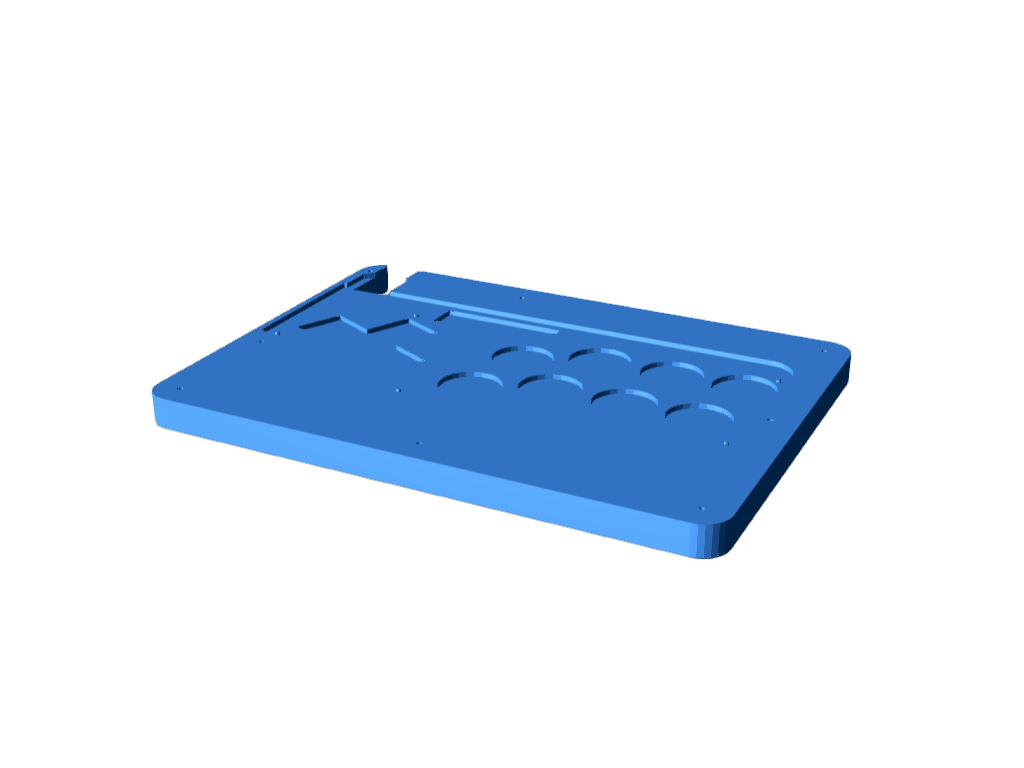

controllerTOP_NOtpu
Quantity x1
PLA
Infill 80% (or higher)
controllerBOTTOM x1
Quantity x1
PLA
Infill 80% (or higher)

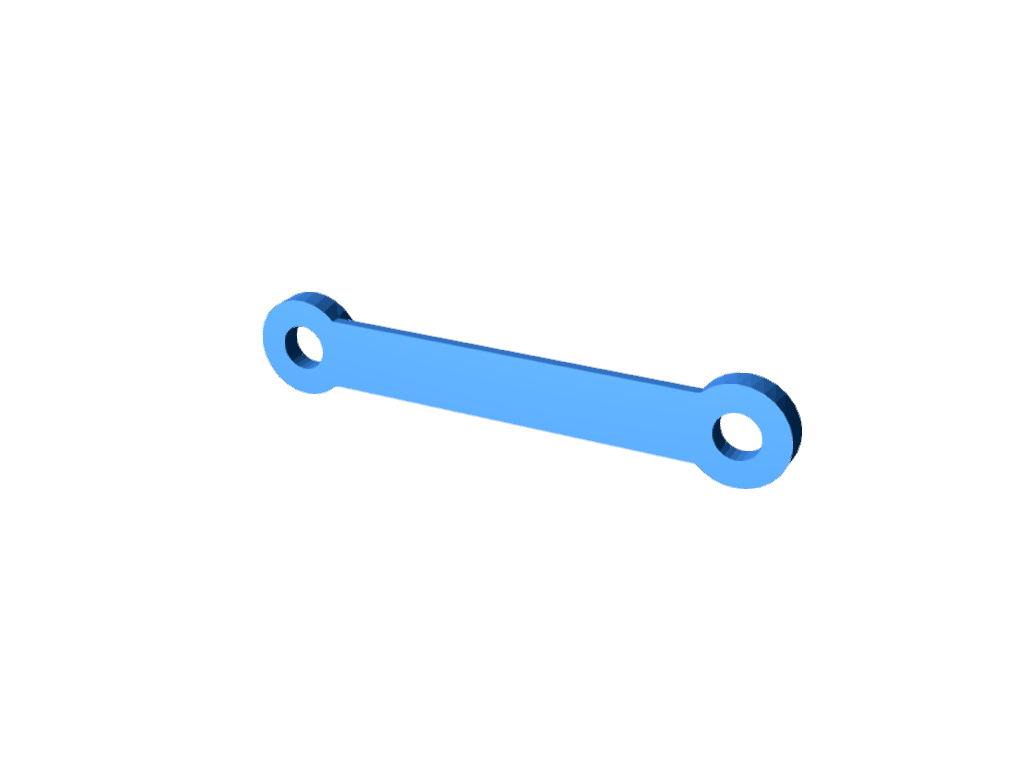

cablestraps
Quantity x4 (add one or two extra incase it breaks)
PLA

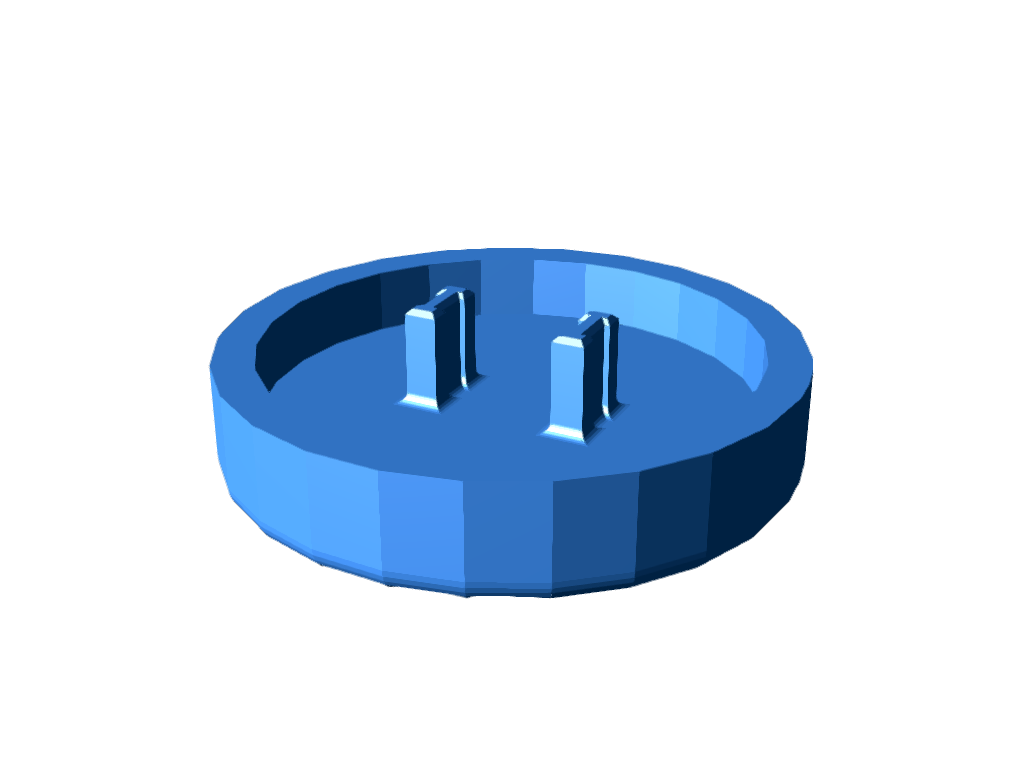

arcadebutton
Quantity x8
PLA
tpuInserts (will need to be glued on)
Quantity x1
TPU(FDM)
refer to the github for additional components needed https://github.com/bobwulff/Switch-2-SPv2/tree/main
CAD-Custom parts and enclosures
FloatingCradleTOP.step
FloatingCradleBOTTOM.step
controllerTOP_NOtpu.step
controllerBOTTOM.step
cablestraps.step
arcadebutton.step
tpuInserts.step
May 01,2026
24 views
Switch 2 SP (floating clamshell) v2

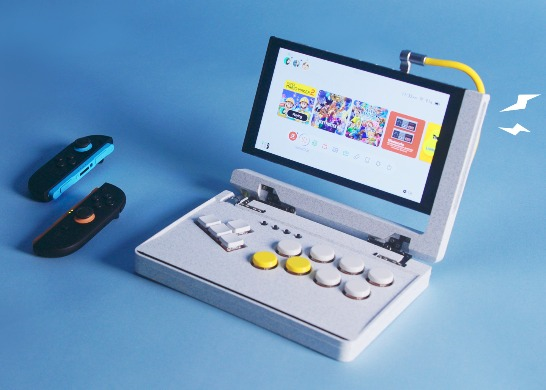

Foldable, magnetic Nintendo Switch 2 leverless arcade controller
24
0
0
Published: May 01,2026
PCBWay Donate 10% cost To Author
File Last Updated: 2026/05/01 (GMT+8)
File update record
2026-05-0113:54:40
CAD or technical drawing file is updated.
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
