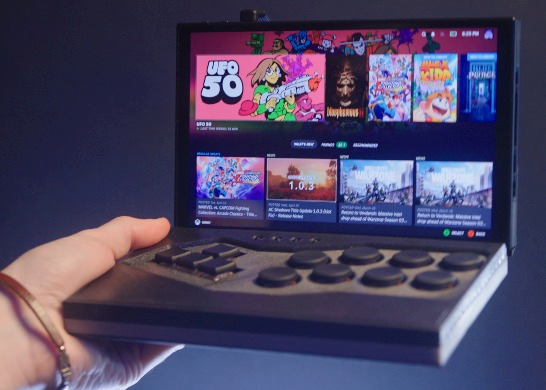

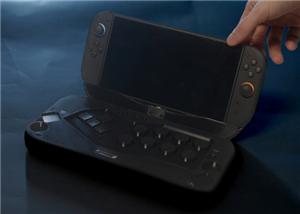

This is a modification to the Lenovo Legion Go handheld PC that allows it to function more like a clamshell / netbook. It attaches a leverless controller to the bottom of the device.

PCB for this project can be seen here https://www.pcbway.com/project/shareproject/Flatbox_Mini_WASD_38dac5d6.html

WARNINGS:

• I have not purchased this from PCB way, so this is untested. It is recommended to print yourself
• Use PLA for all parts

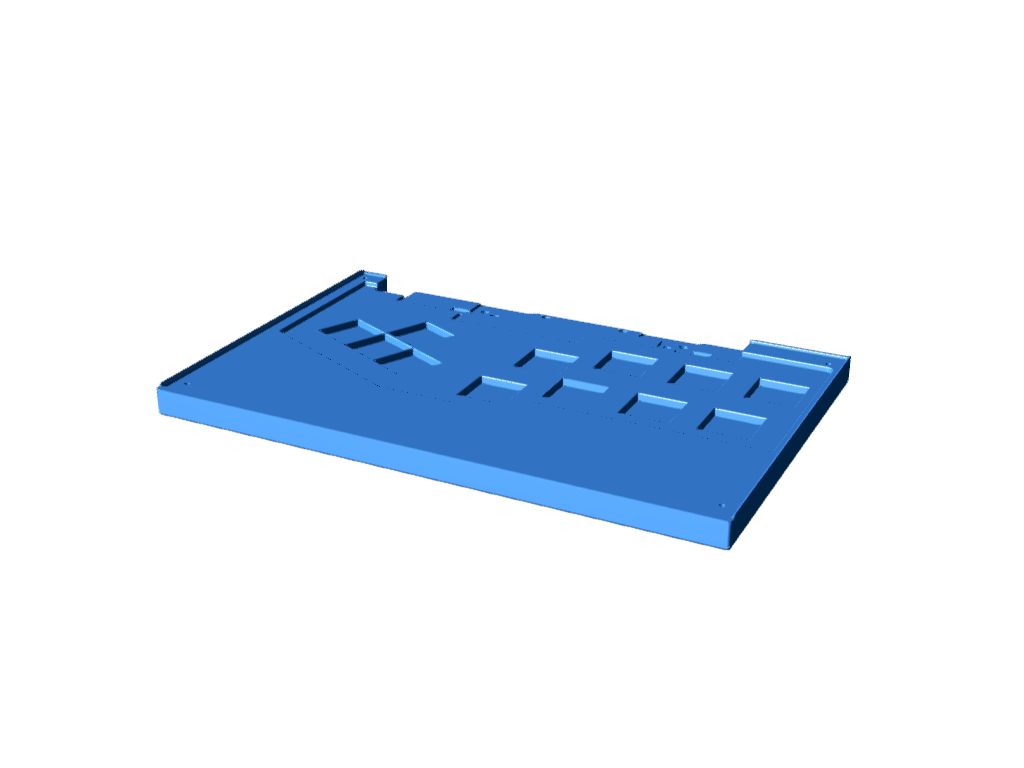

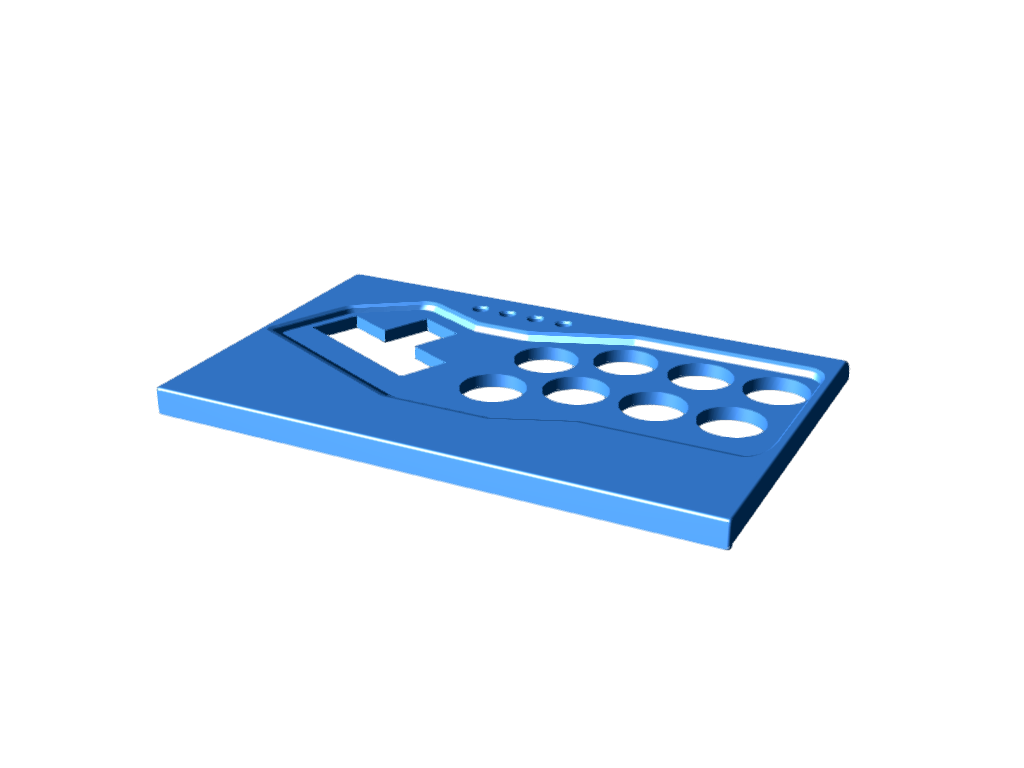

• I do NOT think the TPU stopper will work [red line on the image of the top case]. If purchasing from PCB way, I would recommend ordering the NO TPU STOPPER version of the top piece. PLEASE add a rubber stopper or rubber tape of some sort to the top case in order to cushion the screen when closed.
• The bottom might not be heavy enough. It's recommended to print at a high infill. If PCBway cannot do this, put some weights in there like some change or somethin' idk 🤷
•


COMPONENTS NEEDED

Framework Hinges https://frame.work/products/display-hinge-kit?v=FRANFB0001&srsltid=AfmBOopJ9EJw6HXKC0FaSyZRhZyf8clR3HFSNuRGM48nQlWKyBm1zskz

Heat Threaded Inserts https://amzn.to/3Rn92r1

M2x4 and M2x10 screws https://amzn.to/3GeJXMA

M1.6x8 screws for Lenovo https://amzn.to/3RnncbG

Short USB-C cable https://s.click.aliexpress.com/e/_opmJpjD

Other components listed on PCB page
