Flatbox Mini WASD

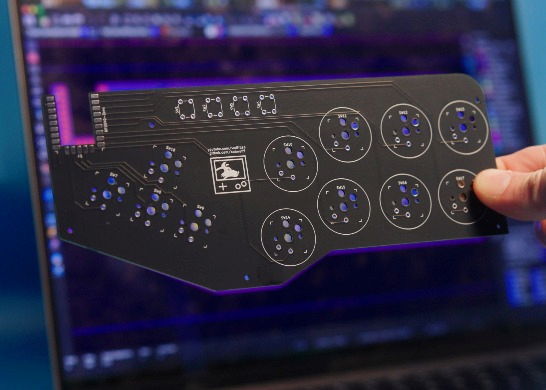

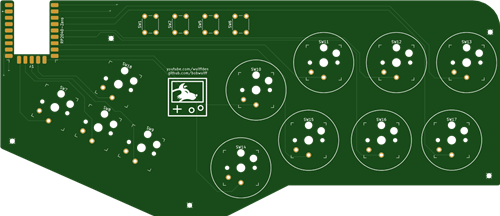

Flatbox Mini WASD: A bite-sized version of the flatbox for smaller projects
This is a fork of the Flatbox rev5. This was originally created for the Lenovo Legion Clam project, which you can find over on YouTube dot com slash WULFF DEN
THIS IS INTENDED TO BE PRINTED AS A PCB, not an Assembled PCB. You can print with all default settings (but you can change the Solder Mask Color to Black for a cool look 😎
COMPONENTS NEEDED:
RP2040 Zero https://s.click.aliexpress.com/e/_oEJN5SR
6x6x11 Tactile Push Button Switches https://s.click.aliexpress.com/e/_ooWODFD
Kailh Low Profile Hot-swappable PCB Socket https://s.click.aliexpress.com/e/_opPKhML
Kailh Low Profile Choc Switches https://s.click.aliexpress.com/e/_omiJzUb
WASD Keycaps https://amzn.to/42BwSVh
Snackbox Keycaps (OPTIONAL, can be printed) https://junkfoodarcades.com/products/micro-concave-keycaps
Heat Threaded Inserts (for 3D printed projects) https://amzn.to/3Rn92r1
M2 screws (varies per project) https://amzn.to/3GeJXMA

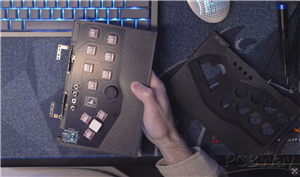

CASE for Lenovo Legion CLAM Project can be found here https://www.pcbway.com/project/shareproject/Lenovo_Legion_Clam_b2800a93.html
Flatbox Mini WASD
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
