Speeduino V0.4.3
This is a fully stand alone ECU that runs off of a Ardunio. Visit Speeduino for more information.
Arduino and MAP sensor are not included in the BOM, make sure to request these if you want them.
Feb 14,2025
2,059 views
Speeduino V0.4.3

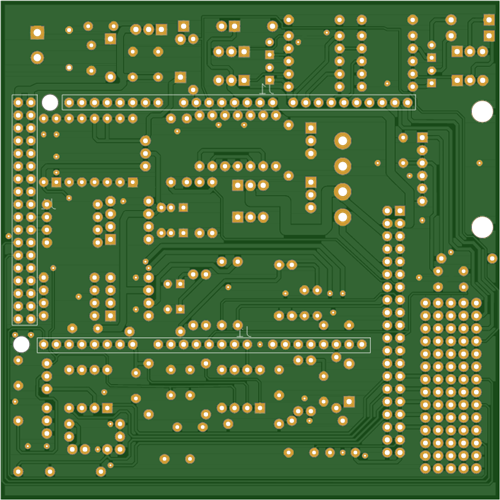

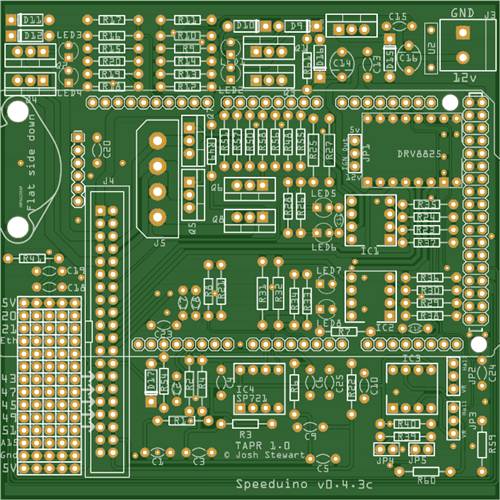

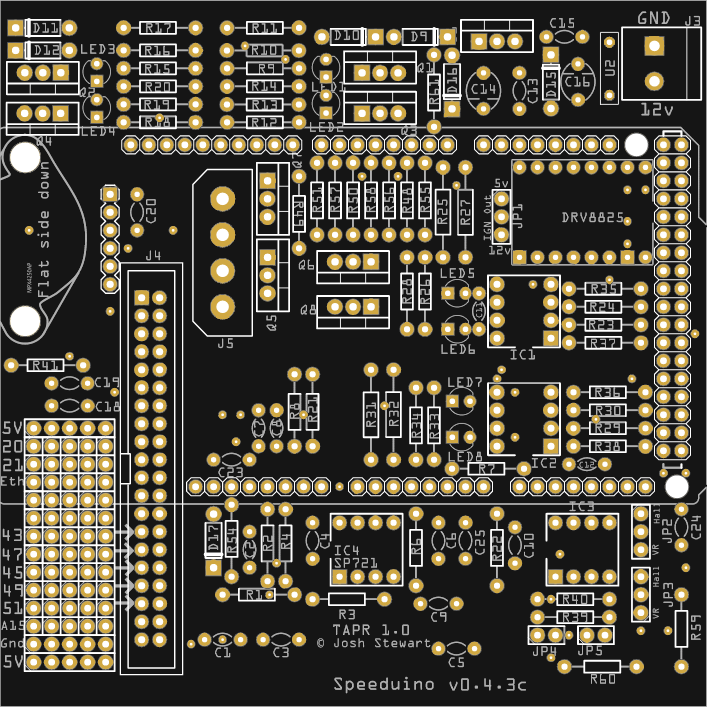

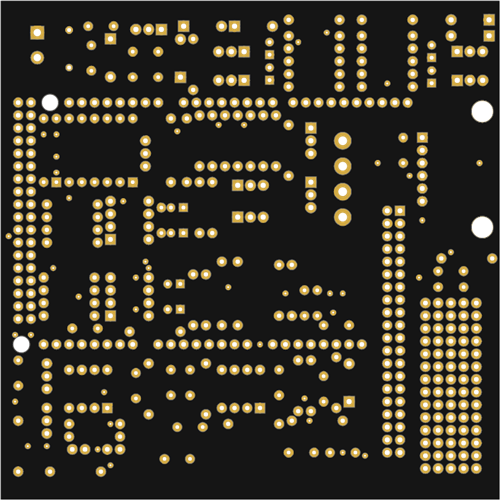

2 Layers PCB 99.8 x 99.8 mm FR-4, 1 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
Orignal speeduino 4.3 design
