Description

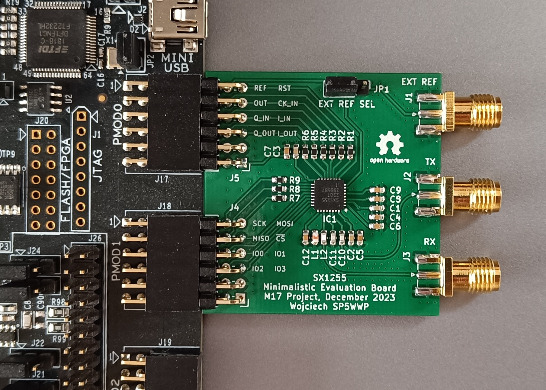

SX1255 PMOD RF shield
A minimalistic PMOD RF shield featuring the Semtech SX1255 IQ transceiver. The device supports virtually any amateur radio mode, including TETRA, and covers 400-510MHz range. The baseband interface is I2S compatible (full duplex).
The design is, of course, open source and available for free on GitHub.
Need technical help? Let's get in touch: https://m17project.org/contact/
Code
Example config code
https://gist.github.com/sp5wwp/25fa989ebd98b3b707eadae9b63af679
Schematic and Layout
GitHub repository (KiCAD project)
https://github.com/M17-Project/SX1255
Jun 01,2025
1,290 views
SX1255 PMOD RF shield
2 Layers PCB 40 x 41 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
SX1255 PMOD RF shield
1290
1
3
Published: Jun 01,2025
Standard PCB
Download Gerber file 6
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2025/07/07 (GMT+8)
File update record
2025-07-0713:36:03
Parts List (BOM) is updated.
2025-07-0713:35:03
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
