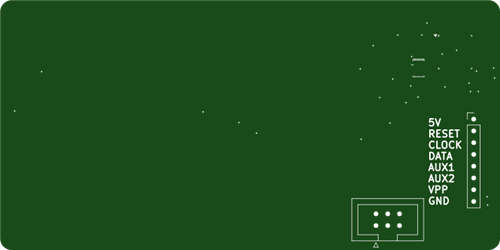

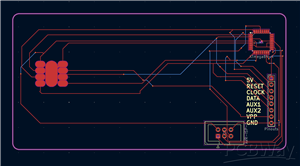

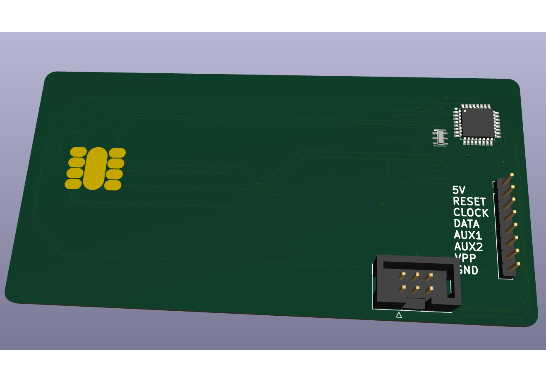

SLE4442 emulator
This project is a smart card emulator based on the ATmega8 microcontroller. It emulates the functionality of an SLE4443 memory smart card, allowing it to be used for development, testing, and educational purposes without requiring a physical SLE4443 card.
The emulator implements the SLE4443 communication protocol and memory behavior, making it suitable for testing smart card readers, developing embedded applications, and experimenting with smart card technology. The firmware is lightweight, easy to modify, and can be adapted to support additional features or custom applications.
Features:
Emulates an SLE4443 smart card
Based on the ATmega8 AVR microcontroller
Compatible with standard SLE4443 card readers
Ideal for development, debugging, and educational use
Open and customizable firmware
SLE4442 emulator
