Quick-Change Tool Post Adapter for Mini Lathe + Cassette box
Quick-Change Tool Post Adapter for Mini Lathe + Cassette box

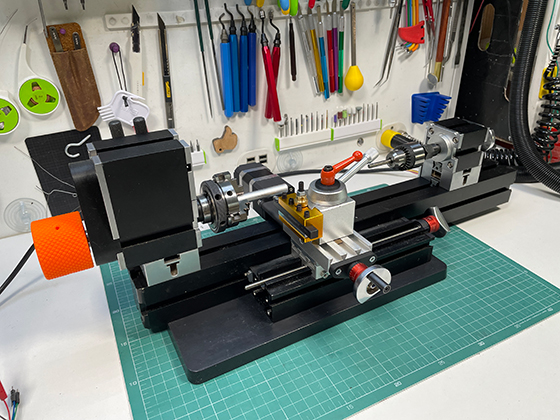

Today's latest modification to my desktop lathe is adding a quick-change tool holder. As soon as the upgrade kits arrived, everything was implemented the same day, and I even had time to try some turning :) Of course, there are more exciting upgrades ahead for this lathe, including converting it into a full-fledged CNC machine. But, as I mentioned earlier, that's for the future. While it is already equipped with motors, other components are still on their way. Be patient, everything will be done in due time, and I'll definitely share my progress.

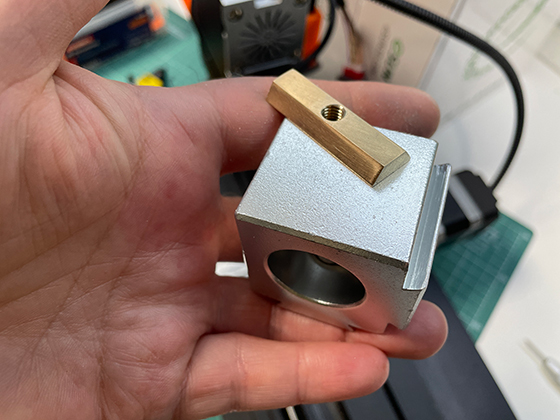

For now, let's talk about the tool holder... For its installation, you'll need a screw with an M6 threaded handle, 55 mm in length (I had a 60 mm one on hand, so I trimmed the excess), and a trapezoidal wedge-clamp, which I made and showed you last time.
I also made similar wedged clamps with M5 threads last time, and I bought an M5 screw-handle with the minimum length as well. I'll show you what that's for next time; it will come in handy.
Additionally, today I printed a bushing for the tool holder base. You'll also need a washer for the M6 screw. This part needs to be printed with 100% fill, and a plastic part is sufficient for reliable installation of the tool holder. However, you could also machine it on the lathe – it's relatively simple. What’s not simple is wasting so much material, especially since aluminum is soon going to be more expensive than gold :) Just kidding, but the prices are constantly rising.

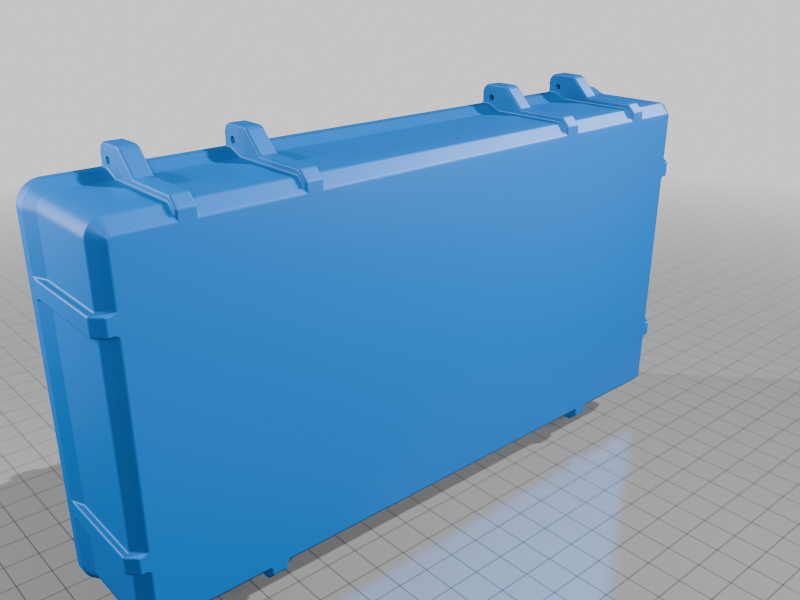

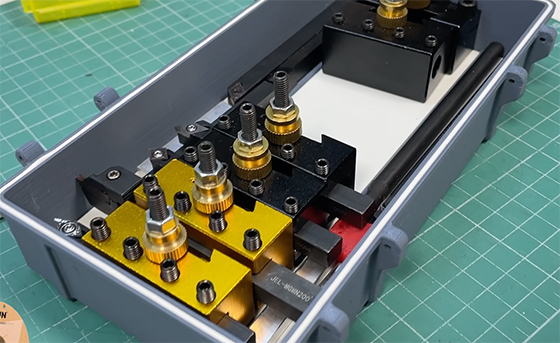

And as a bonus – a box for tool bit cassettes. In the video, I showed all the processes happening with the lathe today, including making the box. Everything was printed using eSUN plastic, with links also in the description.
There’s much more exciting stuff ahead: upgrading the feed system, adding position sensors and automation, etc. Each new part and modification gets the lathe closer to being something can sit back and watch while it works without having to manually crank its handles. I'm excited to share my experiences and developments. Stay tuned for more interesting, useful, and captivating updates!
See the video for details:
If you liked this thing - let me know by putting like!
Parts links below:
Links to used tools:
- Mini Metal Lathe
- Quick Change Tool Post Cutter Holder
- Set of lathe tool holders for cutting inserts
- Cut Tool Holder
- Center Drill Bits
- Insert Cutting Tool Diamond DCGT070202
- Insert Cutting Tool for Aluminum CCGT060202 AK H01
- Insert Cutting Tool for Aluminum MGMN200-G H01
- Insert Cutting Tool for Aluminum DCGT070202 AK H01
- NOGA deburring tool and Blades
- Drill Press Stand
- Coordinate X-Y axis Table
- HILDA Electric Drill
- YIFINO HRC70 4-Flute Blue Nano Coating Milling Cutter
- Carbide Machine Reamer
- Reamer Tool Set
- Thread Screw Tap M2/M2.5/M3/M3.5/M4/M5/M6
- Niimbot D110 Label Maker Printer
- Niimbot Color Label
My new machine:
 |
 |
My favorites:
 |
Thank you for every tip or donation,
it means great recognition for me and helps a lot to keep going!
 |  |
| https://ko-fi.com/perinski |
| BTC:bc1qplpzq36ghw84hty4nn2zzu4ps4sdh4th0v93j8 |
| ETH:0xc766ebbeAa76aaf629788c8F99C33A8d80d48977 |
My some other things:
 |
 |
3D Printer • Accessories
Electronics Tools • Accessories
Hand Tools
Power Tools • Accessories
Photo Video Accessories
Gadgets • Accessories
Other
CAD-Custom parts and enclosures
Toolholder_bushing.STEP

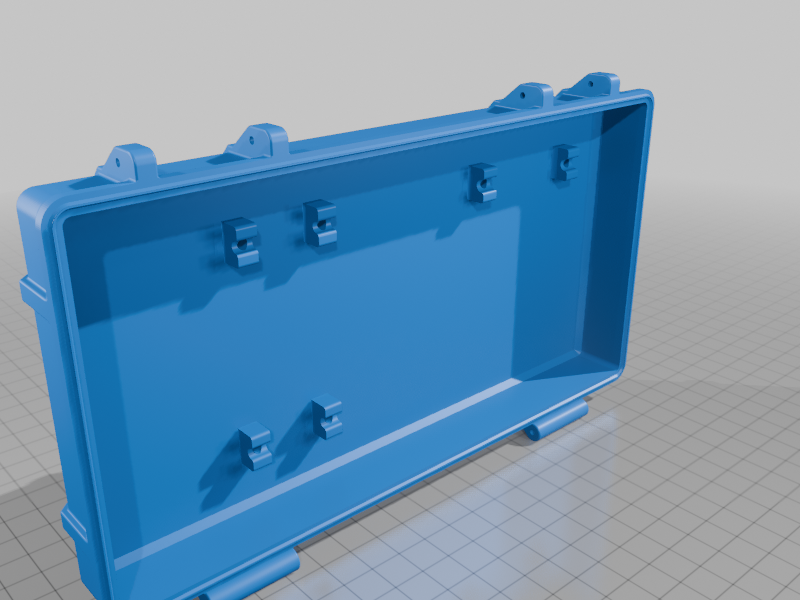

Bottom.STL
Lid.STL

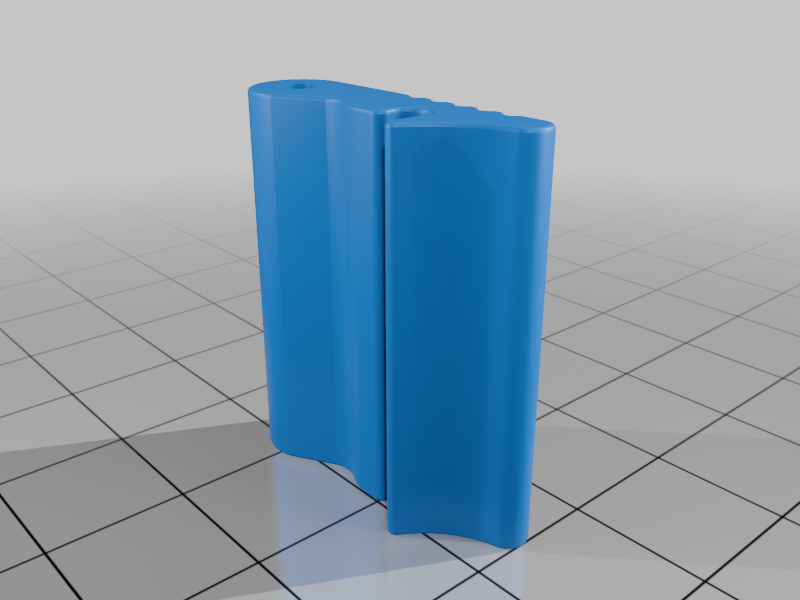

Latch.STL

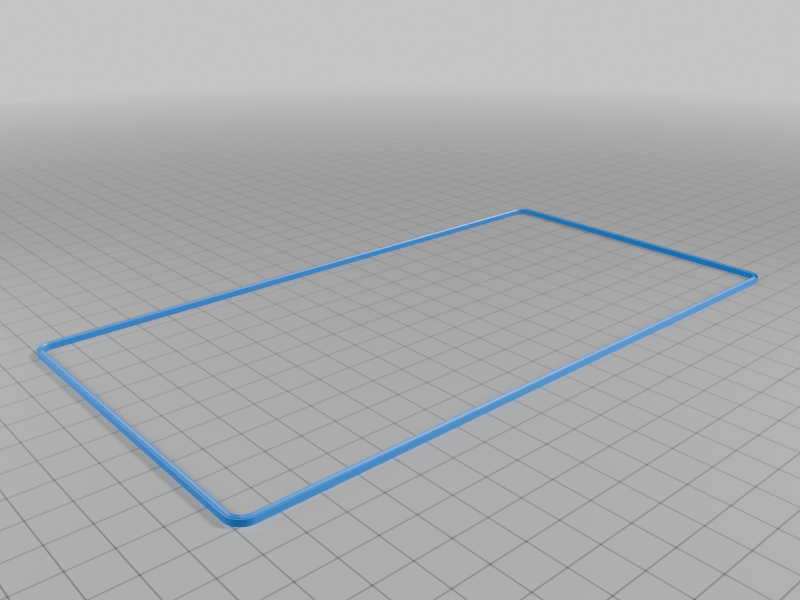

Seal.STL
