Blade Honing Guide
Blade Honing Guide
For those who work with handheld cutting tools, it's no secret how important it is to have the right edge sharpening. Without special devices, it's difficult to achieve proper sharpening or honing manually, and you can easily damage the edge, leaving you disappointed with the tool's performance. There are many ready-made tools on the market that can handle this task. Below, I've listed examples that are quite effective, but I was curious to create my own device, which, in my opinion, would work just as well, if not better, than the presented options. However, it all depends on your skills.
All parts of the device are made from eABS+HS plastic by the well-known company eSUN. Many are familiar with this plastic, but for those encountering the HS designation for the first time, let me explain: it stands for "High Speed." With the advent of high-speed printers, working with regular ABS plastic has become inconvenient, as its layers don't fuse well at high speeds. Printing slowly is no longer appealing, so eSUN's new developments come to the rescue, allowing for products with excellent strength characteristics, minimal shrinkage, and the ability to print at speeds up to 300 mm/s and accelerations up to 20000 mm³/s.
For the roller, I used TPU plastic from the same company. Why do I recommend TPU? The honing process involves the roller contacting abrasives, and regular plastic or metal bearing surfaces will wear out. However, a TPU roller will last much longer. I used flanged bearings F693ZZ. All component links are provided below.
To adjust the clamping jaws, I used a threaded rod with left and right threads on either side, M5x70 mm, along with M5 nuts with left and right threads.
I recommend printing all parts at full infill with maximum quality and minimum layer height.
You can see how to assemble the Blade Honing Guide in my video:
 |
If you liked this thing - let me know by putting like!
Parts links below:
- Honing Guide Jig 1
- Honing Guide Jig 2
- Honing Guide Jig 3
- Diamond Sharpener Grit 80-3000
- Left and Right Thread Double End Rod M5x70
- Nut with thread turn left A2 stainless steel M5
- Nut with thread turn right A2 stainless steel M5
- Bearing F693ZZ
- Insert Knurled Nuts M3
- Inserts Nut M2.5
- Cylindrical Pins D2,D3 x4mm
- Stainless Steel Cylindrical Pins D2,D3 x 4 mm
- Head Flat Screw M2.5
- Stainless steel DIN912 hexagon socket cap head screw M3
- Super Glue 502
- Universal Glue Quick-drying
- eSUN eABS+HS
- ESUN Filament TPU
- ESUN Filament TPE
Links to used tools:
My new machine:
 |
 |
My favorites:
 |
Thank you for every tip or donation,
it means great recognition for me and helps a lot to keep going!
 |  |
| https://ko-fi.com/perinski |
| BTC:bc1qplpzq36ghw84hty4nn2zzu4ps4sdh4th0v93j8 |
| ETH:0xc766ebbeAa76aaf629788c8F99C33A8d80d48977 |
My some other things:
 |
 |
3D Printer • Accessories
Electronics Tools • Accessories
Hand Tools
Power Tools • Accessories
Photo Video Accessories
Gadgets • Accessories
Other
CAD-Custom parts and enclosures
Law_Nut_Lid.STL

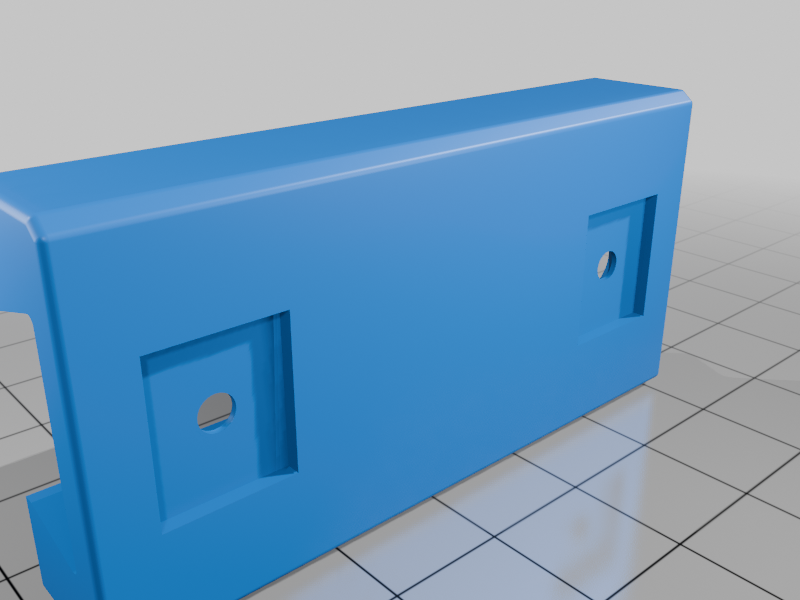

Clamping_bar.STL

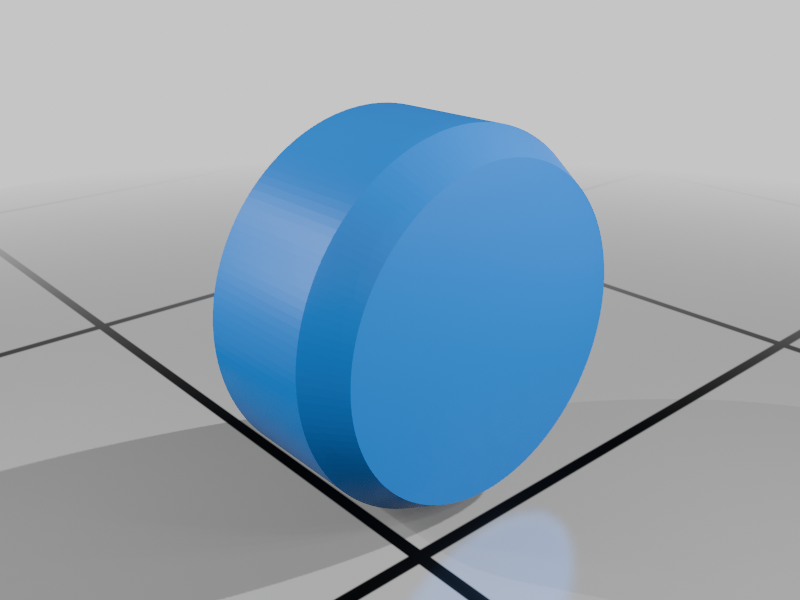

Knob_Bolt_M3_Cap.STL
Base.STL

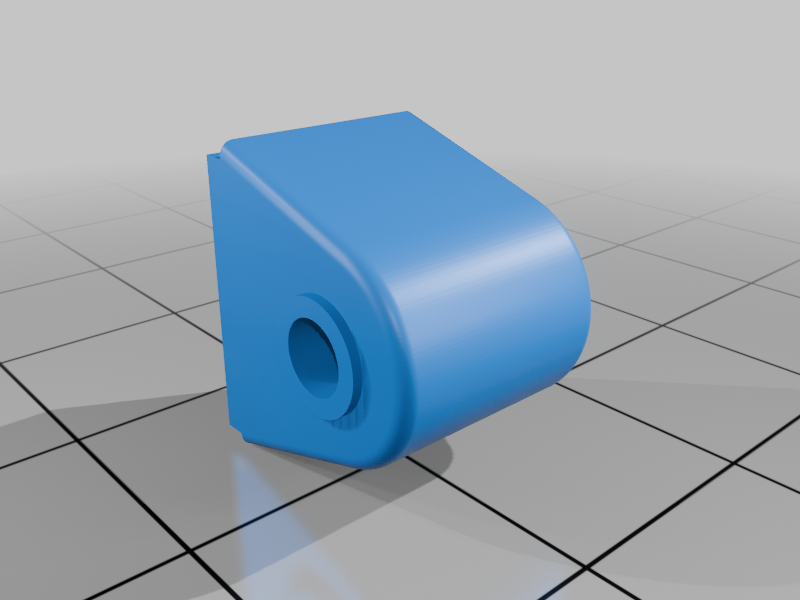

Roller_Support.STL

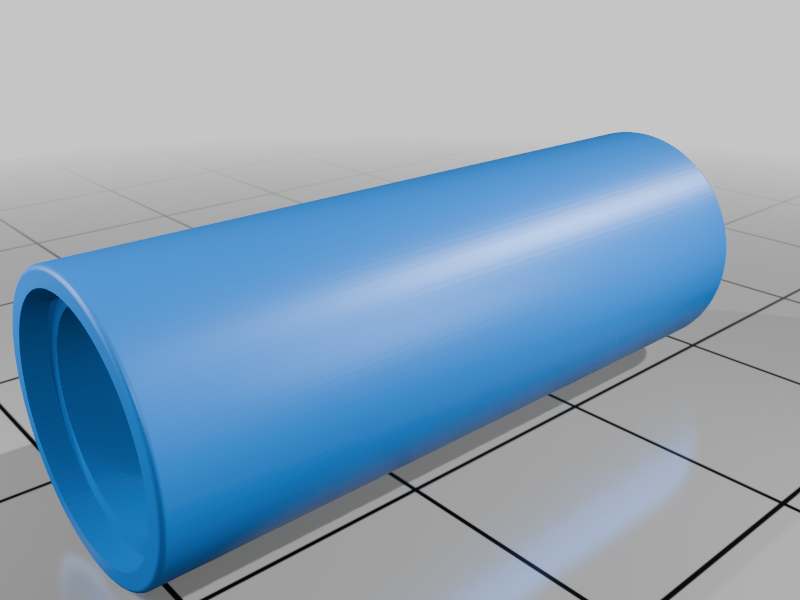

Roller-TPU.STL

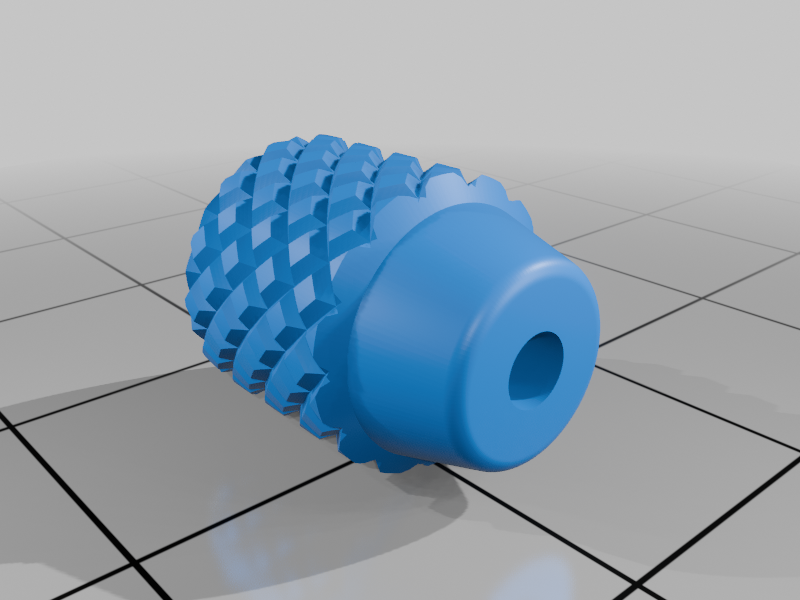

Knob_L.STL
Knob_R.STL

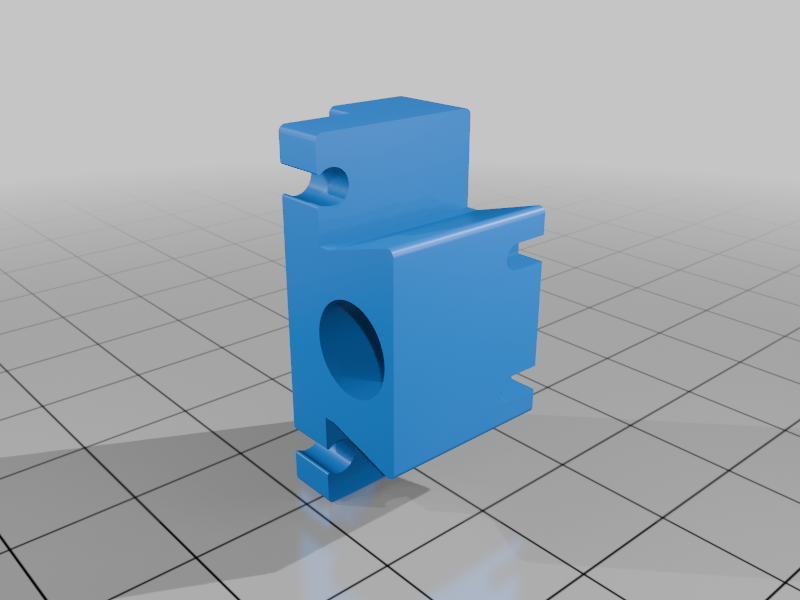

Jaw.STL
