KiCad 9.0 |
Power Switch module

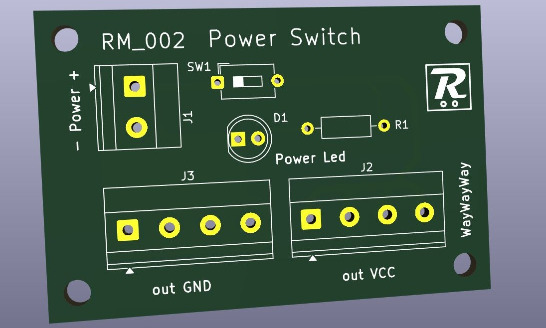

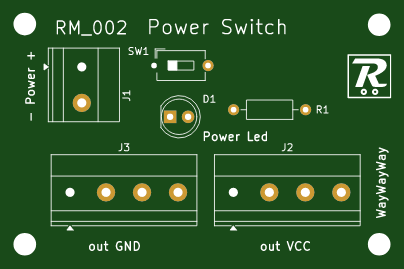

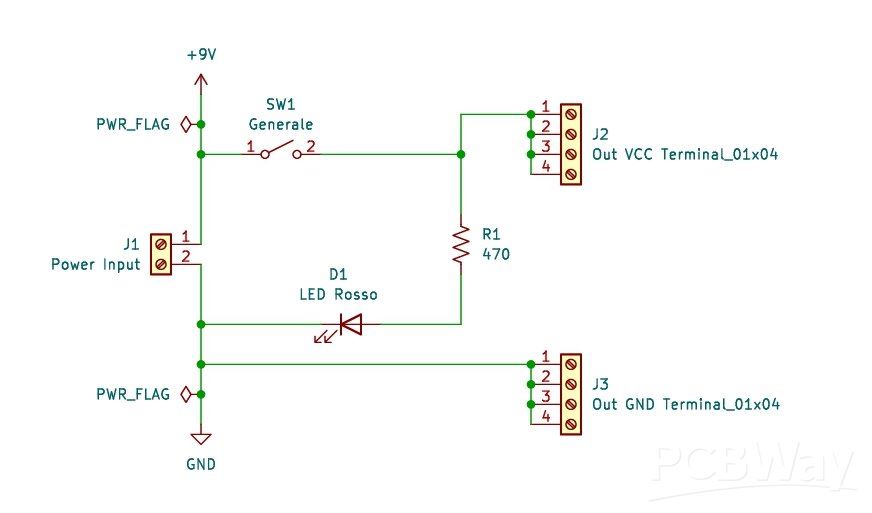

A generic PCB that has power input, a switch to power on up to 4 external circuits and a led showing if the current is flowing through the switch.

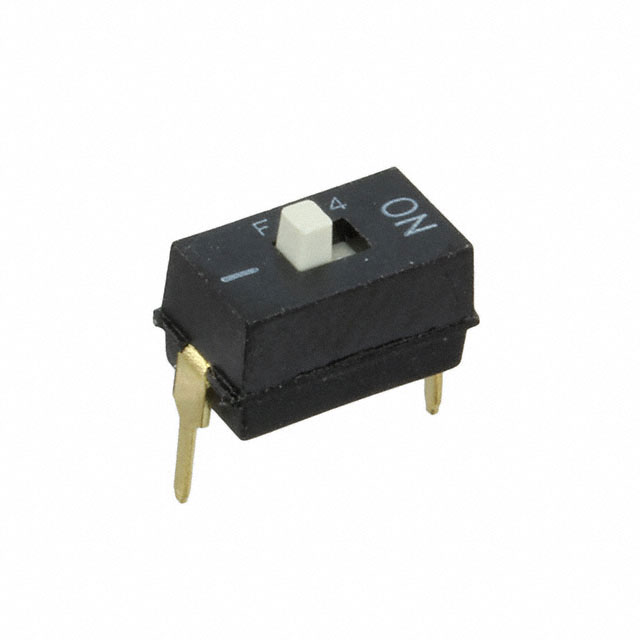

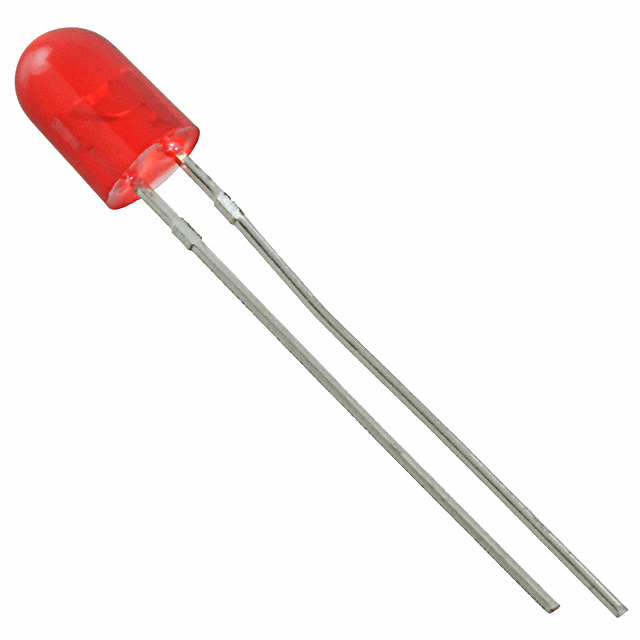

The components to be installed on the PCB, that is the screw terminal blocks, the switch, the led and its resistor must be adjusted according to the voltage used in the input.
In this way, the PCB can be used for any DIY project and allows you to separate the power module from other circuit lines. Besides you can put the switch in a different zone of your case, also far from the main PCB.
You can use this module everywhere you want to control the power on-off state with a simple switch.
Power Switch module
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
