PCBWay 11th Anniversary Badge

A beautiful badge for PCBWay 11th anniversary!

Graphic design and concept

by Guiye Perez Bongiovanni

It's also a ATTiny85 dev board!

You can use it like Digispark ATTiny85.

Code

SeqBlink.ino

Gist

https://gist.github.com/kawashimaken/247b40d24ad4f3604516183d6abb6c02

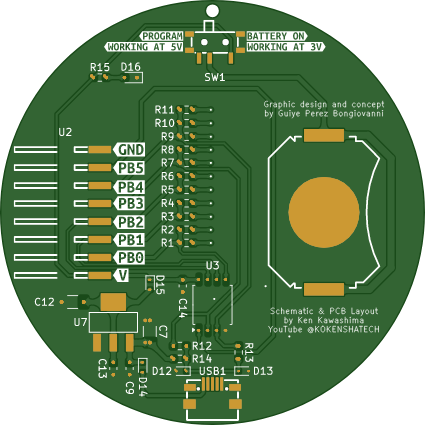

Schematic and Layout

pcbway-11-badge.pdf

Download Gerbers Download BOM(Bill of materials)

May 30,2025

322 views

PCBWay 11th Anniversary Badge

2 Layers PCB 60 x 60 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
