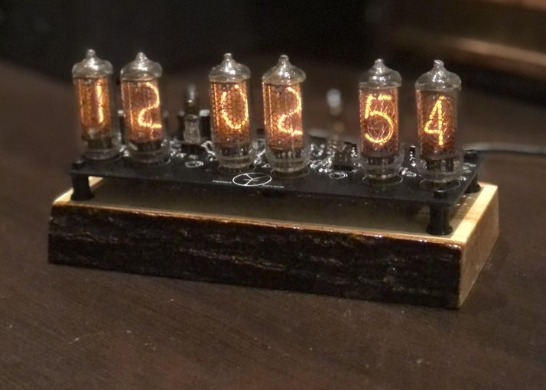

Nixie Clock
Features:
-IN-14,IN-8 Nixie tubes. I prefer IN-8. Number 5 isn't a number 2 up side down.
-High voltage power supply is built-in.
-High voltage digital adjustment saved in eeprom.
-Low voltage power supply can be 9v to 12v
-6 leds, digitally adjusted (push button) can be turn off. brightness saved in eeprom
-Nixie saver animation but not too often
-Little in-3 can be on, off or flashing, saved in eeprom.
-No ghosting effect.
-No exotic parts.
-Almost all discrete components. Not very expensive to do.
-Time and date as well.
-DS3231 so time is accurate and keep by battery. (+- 2ppm)
-Supported AVR are atmega 48, 88, 168 and 328
More information here:
Schematic and Layout
Dec 23,2023
1,109 views
Nixie Clock
This clock is now working since 6 years without any problem.
https://www.instructables.com/Nixie-Clock-YT/
