Raspberry Pi Pico RP2040 16Mb (WeAct Studio)WeAct Studio
|
x 1 | |
|
|
BSS84,215 |
x 1 | |
|

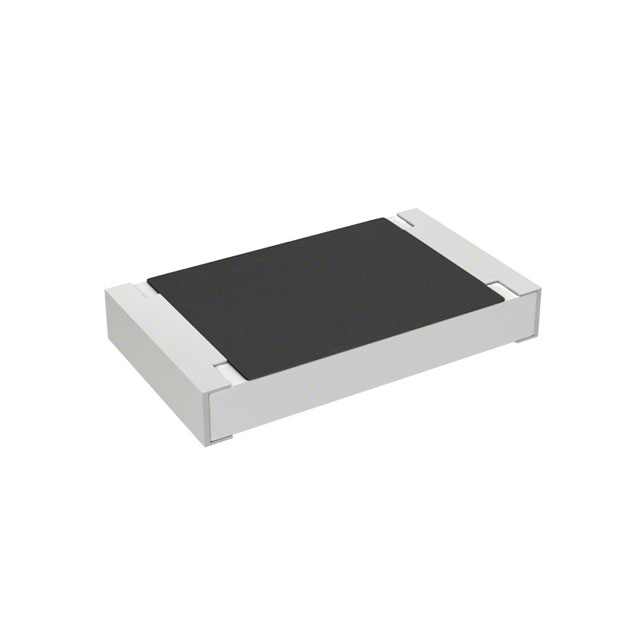

RCS0402100RFKEDVishay Dale
|
x 1 |

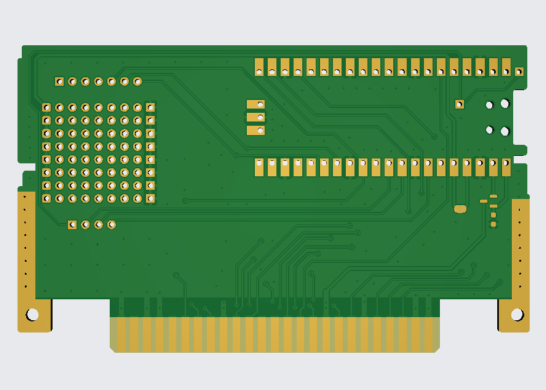

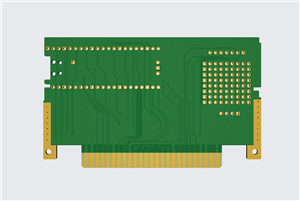

N64 16Mb Cartridge Board
Originally posted by kbeckman https://github.com/kbeckmann/PicoCart64
Make sure to order the board with a 1.2mm thickness!
Assembling the board:
3 components only:
-Line up the RPico with the USB connector facing outwards and solder the pads. (it is important that you use the 16Mb WeAct's RPi Pico).
-Solder the MOSFET (BSS84) according to the pin markings.
-The resistor (100k 0603) is optional to solder, but was placed there for good measure. (There is a resistor on the Pico, so it is not strictly needed.)
Uploading firmware and a ROM:
This website guides you through the steps to program the required firmware, as well as how to generate and program a ROM file to the board.
N64 16Mb Cartridge Board
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
