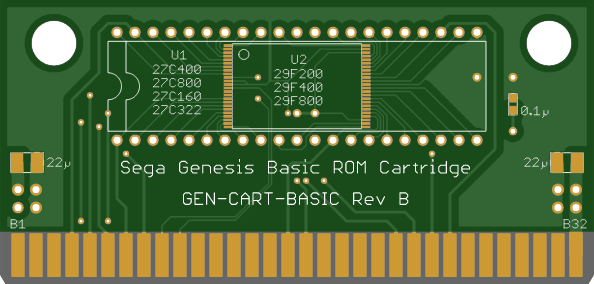

Genesis/Mega Drive 4Mb Cartridge Board
Genesis/Mega Drive 4Mb Cartridge Board
Simple to use Sega Genesis/Mega Drive 4Mb Cartridge Board, 100% compatible with original hardware.
Materials needed:
IC1: 27C322 DIP42 Eeprom memory for 4Mb Rom, or 29F800 TSOP48 Flash memory for 1Mb Rom
C1, C2: 10uF 16V Electrolytic Capacitor
C3: 100nF 16V Ceramic Capacitor

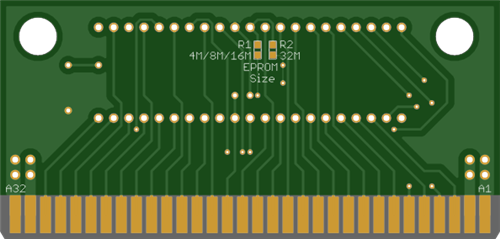

Make sure to short R1 or R2 on the back side
For Genesis/Mega Drive 4Mb cartridge with Saving Feature check my other project.
