Arduino Nano V3Arduino
|
x 1 |
|
KiCADKicad
|

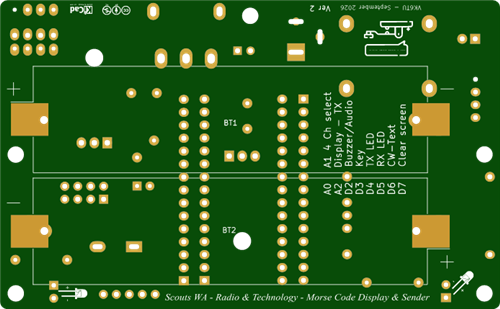

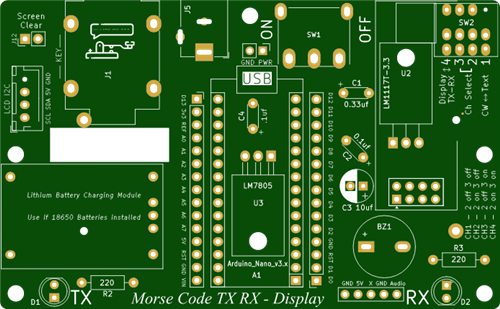

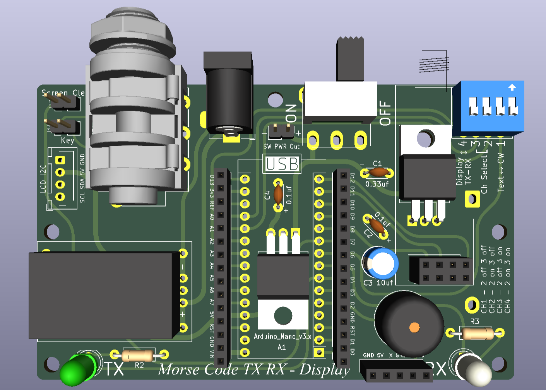

Morse Code TX RX display 2
Designed to allow Scouts to experience Morse Code,
Using a Morse code straight key if timing is correct the letters keyed will show on the display, set to about 10 wpm.
There is the option to add a NRF24L01 RF module which will allow a second display to show what CW or text is keyed.
Some components are only required for this option like the 3.3V regulator
This board has the option to add 2 x 18650 batteries and a charging module
The code will work with some older 20 x 4 displays and also 40 x 4 displays
Am working on a separate board that will fit in a Clear lid enclosure
Morse Code TX RX display 2
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
