Lynxmotion Hunter 500 Nose Mount

Remove from box, bolt to drone. Project complete.

CAD-Custom parts and enclosures

C-1CN16W749593A_NosePiece_Hunter500_v1.2

C-1CN16W749593A_NosePiece_Hunter500_v1.2.step

Apr 17,2025

165 views

Lynxmotion Hunter 500 Nose Mount

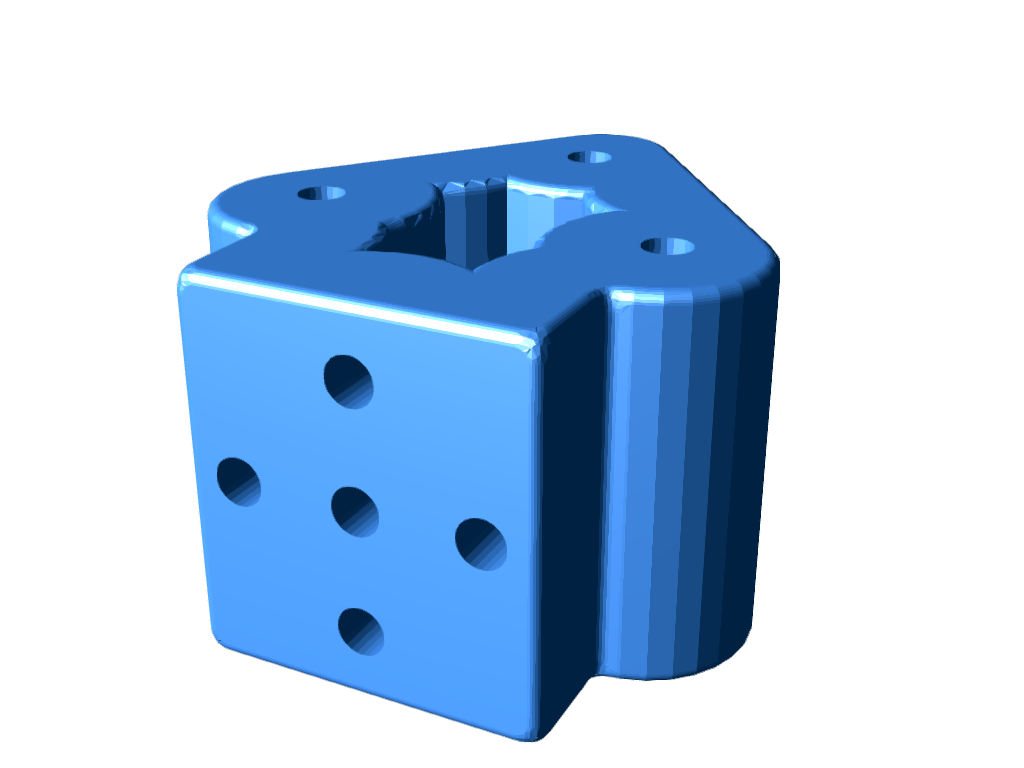

Fills the center cavity between body plates in the Hunter 500. Provides mounting solutions for nose gear, significant rigidity increase.
