Eric Allbutt
AUSTRALIA • + Follow
Tools, APP Software Used etc.
|
|
eMachine Shop Free CADeMachineshop
|
Description
Lorinser waffleplate

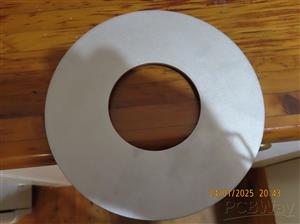

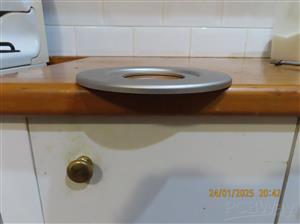

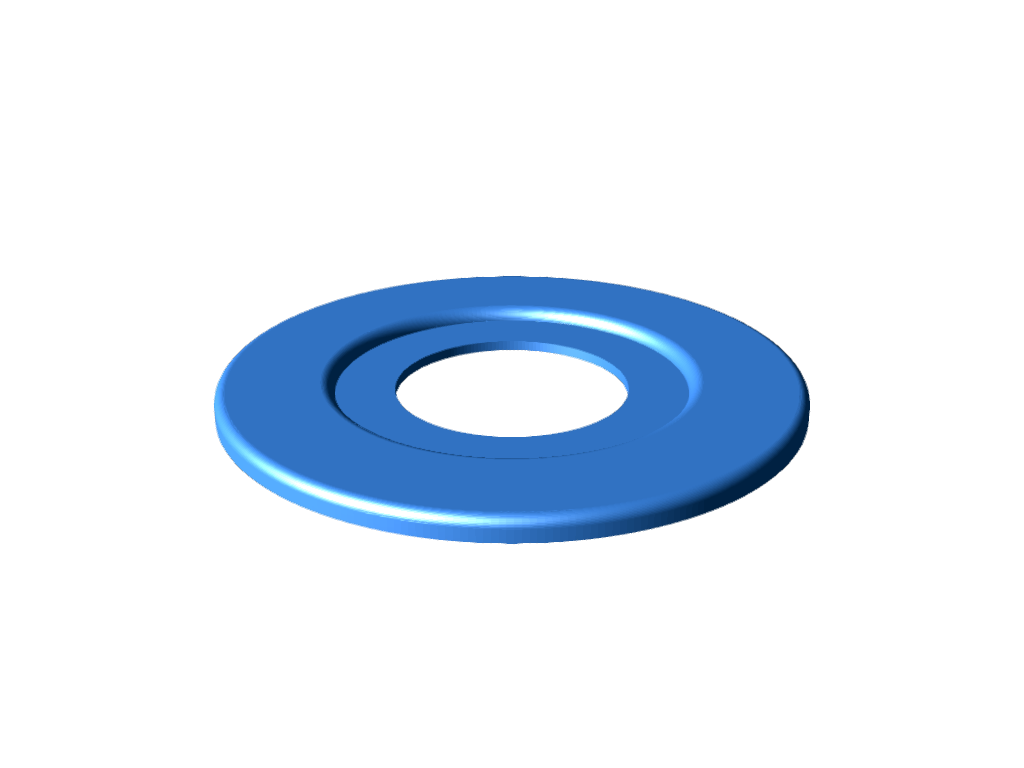

This is a replacement wheel lug cover (Waffle Plate) for the early style Lorinser RSK modular alloy wheel that was manufactured under contract by BBS using BBS RS barrels & lips, the examples shown here are CNC 6061 Aluminium with a bead blasted finish, shown unpainted, the originals were pressed from 2mm aluminium sheet, these could also be 3D printed.
CAD-Custom parts and enclosures
C-1K1W864527A_lorinser waffleplate
C-1K1W864527A_lorinser waffleplate.iges
Step file
lorinser waffleplate.step
DXF file
lorinser waffleplate.dxf
STL file
lorinser waffleplate.stl
Jan 24,2025
561 views
Lorinser waffleplate
Replacement wheel lug cover for the BBS RS based early version of the Lorinser RSK modular alloy wheel.
561
0
0
Published: Jan 24,2025
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
