Irem Colour Resistor Ladder 10L471G

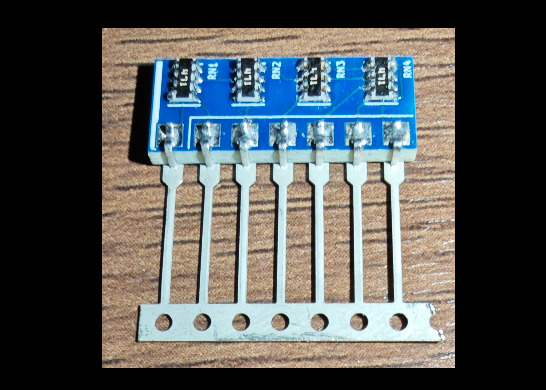

Used on mny Irem arcade boards from M72 to M92. You can fit these with header pins or use lead frame pins as pictured (TE Connectivity 1544210-2). They are challenging to hand solder so I've included a BOM in case you want to try ordering them part assembled.

Download Gerbers Download BOM(Bill of materials)

Aug 12,2026

20 views

Irem Colour Resistor Ladder 10L471G

2 Layers PCB 7.6 x 18.2 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen

Reproduction part for Irem 10L471G used for colour mixing.

Published: Aug 12,2026
