EasESC motor controller *2
This is the EasESC a 1.5A 9v capable dual brushless motor driver
I've designed it to be as easy to build as possible

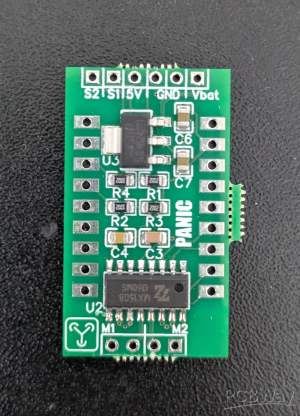

Aside from the boards SMD'd by PCBWay you will need an RP2040 zero to solder to the bottom of the board
This version of the project has 2 boards to a panel so will make a minimum 10 EasESCs in one order.
This is the smallest number of boards made with SMD
Connections:

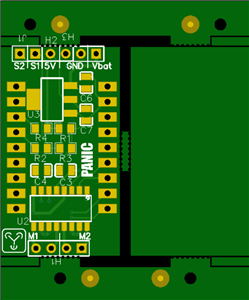

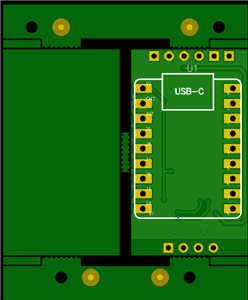

RP2040 is soldered to the underside of the board

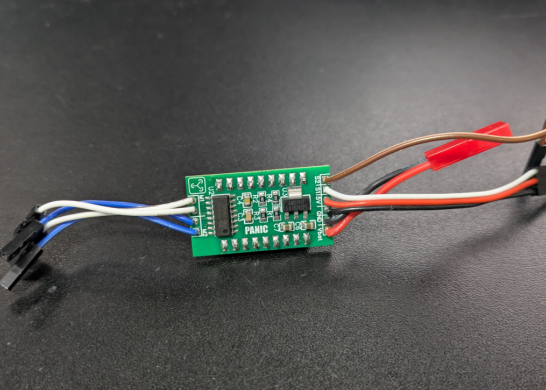

s2 goes to the data pin for channel 2 on an RC receiver
s1 goes to the data pin for channel 1 on an RC receiver
5v goes to the power pin on any channel on an RC receiver (providing the receiver with power)
GND goes to both the ground pin on any channel on an RC receiver and the battery ground
Vbat goes to the positive of the battery (or a switch that connects to the positive of the battery)
Firmware for this project is available on git hub here: https://github.com/Panic-Ben/EasESC
