KiCad 9.0 |

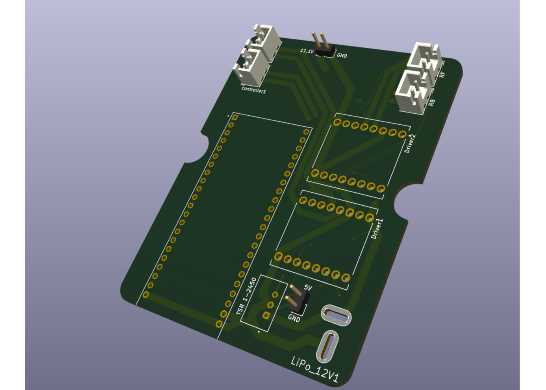

ESP32_RoverBase_v2
A esp32-s3-Devkit-c1 wrapper pcb for quad wheeled dc-motor-driven TT-motor Rover.
Also Takes 2x TB6612FNG motor drivers and a traco power tsr 1-2450 step down module.
Powered by a DEANS port taking in 11.1V LiPo.
