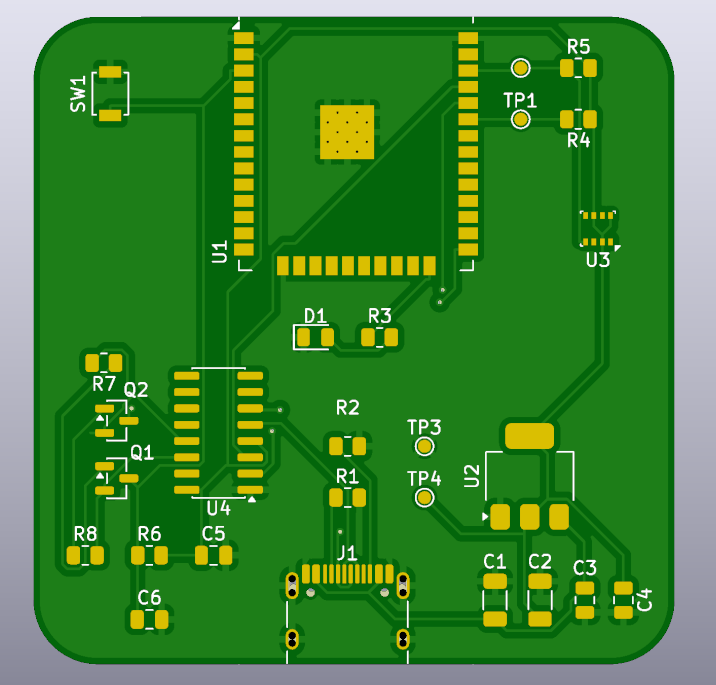

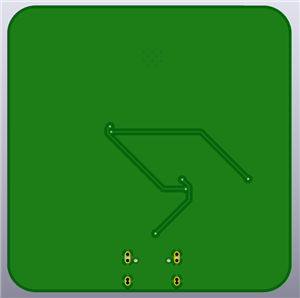

ESP32 Environmental Sensor
This project is a smart sensor that plugs in with a standard USB-C cable. You plug it into any normal usb-c, and the onboard sensor constantly monitors the environment around it. It then uses Wi-Fi to send that data out so you can track the room's conditions from anywhere. Uses the BME280 which allows digital humidity, pressure and temperature tracking. Open-Source made in KiCad. Example code with website showing sensor data available.
ESP32 Environmental Sensor
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
