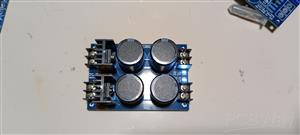

Dual Seperate Rectifier Board
This board is rectifier for multipile output DC power supply.
Power supply has dual RK6006 adjustable regulator. There are two symmetrical and two single AC winding on toroidal transformer.
Toroidal transformer has 2x28V main winding and 2x22V AC and 2x12V and 5V and 6V winding.
Power supply has 7 DC output. They are -15V, -12V, -5V, +5V, +12V, +15V output. These outputs is taken from symmetrical 2 x 22V AC output. And there is a 3.3V DC seperated output. This channel and RK6006 outputs fully isolated each other. They can be connected common ground or symmetrical.
Assembly...
I also made some revisions on assembly.
There is an extra output on power supply. This output is different from others. Because this output is AC. There is no usage an AC output on DC power supply but sometimes AC output or zero crossing syncronisation is needed.
Later, a zero cross detection circuit may be added to power supply.
Time will show this.
Project description is also accessible on hackster.io. Link is below:
https://www.hackster.io/FiDeNet/multiple-output-power-supply-2a8769
