Core One + Left side panel remix

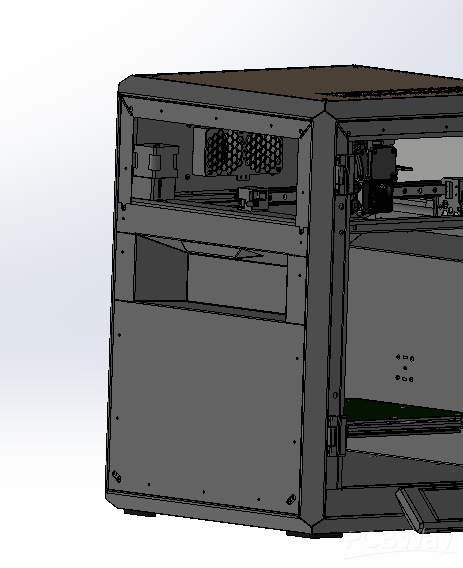

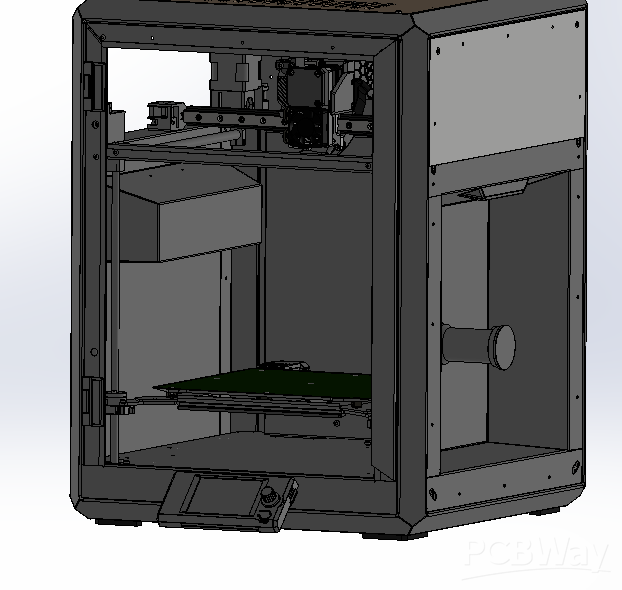

I have been looking for some time to modify my Core One to have a chamber heater for faster heat up time. This side cover enables you to fit basically anything you want inside the chamber. Available space inside with this side panel is 205x240x67 mm (height x width x depth). Something like Creality chamber heater fill fit with no problem. The idea for now is to have finished solution inside. In the future the plan is to have custom heater controlled via GPIO hackerboard with GCODE.

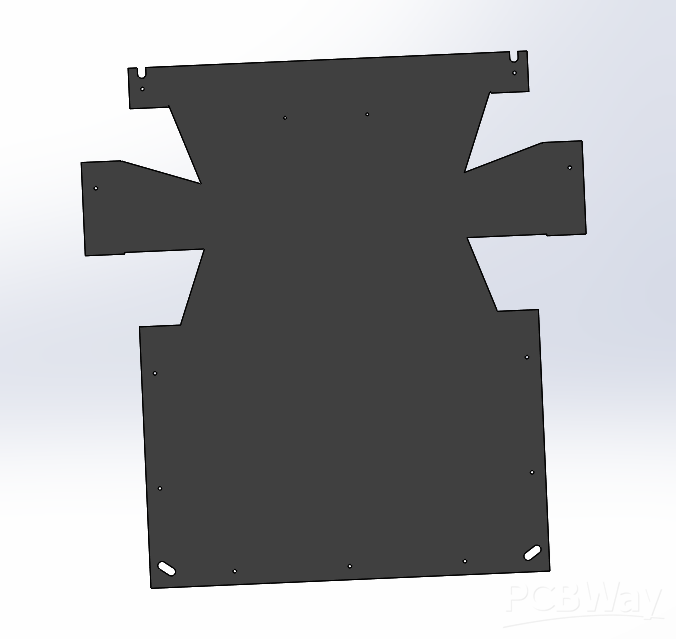

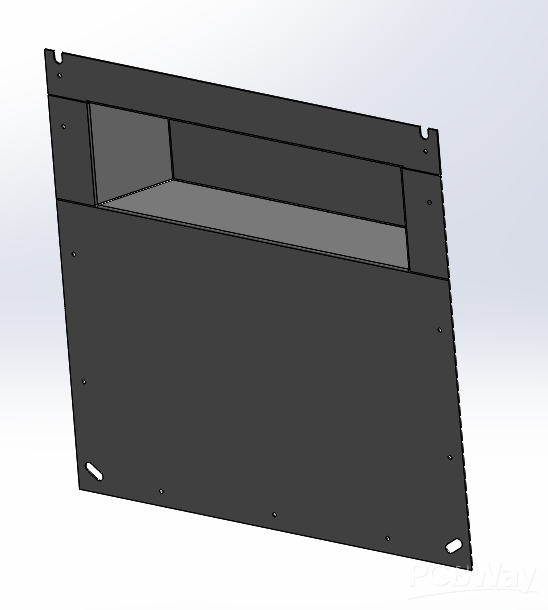

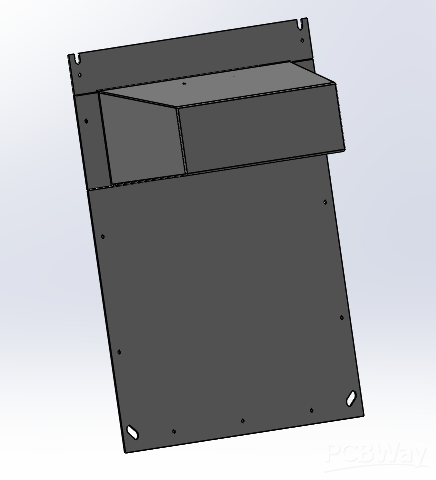

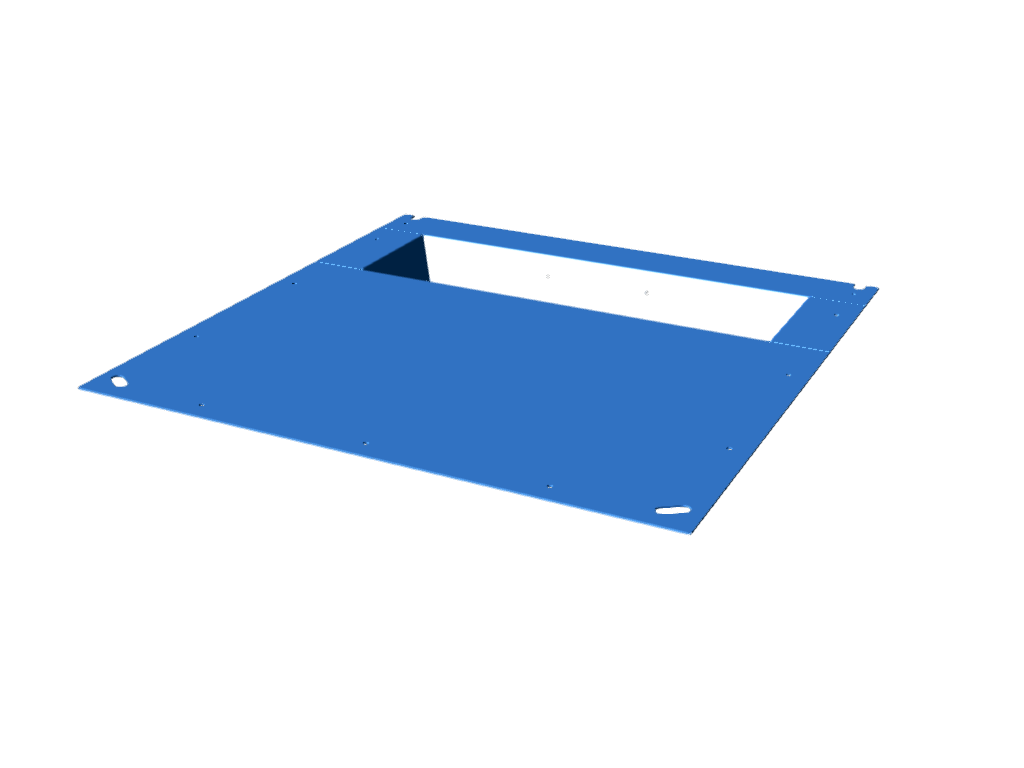

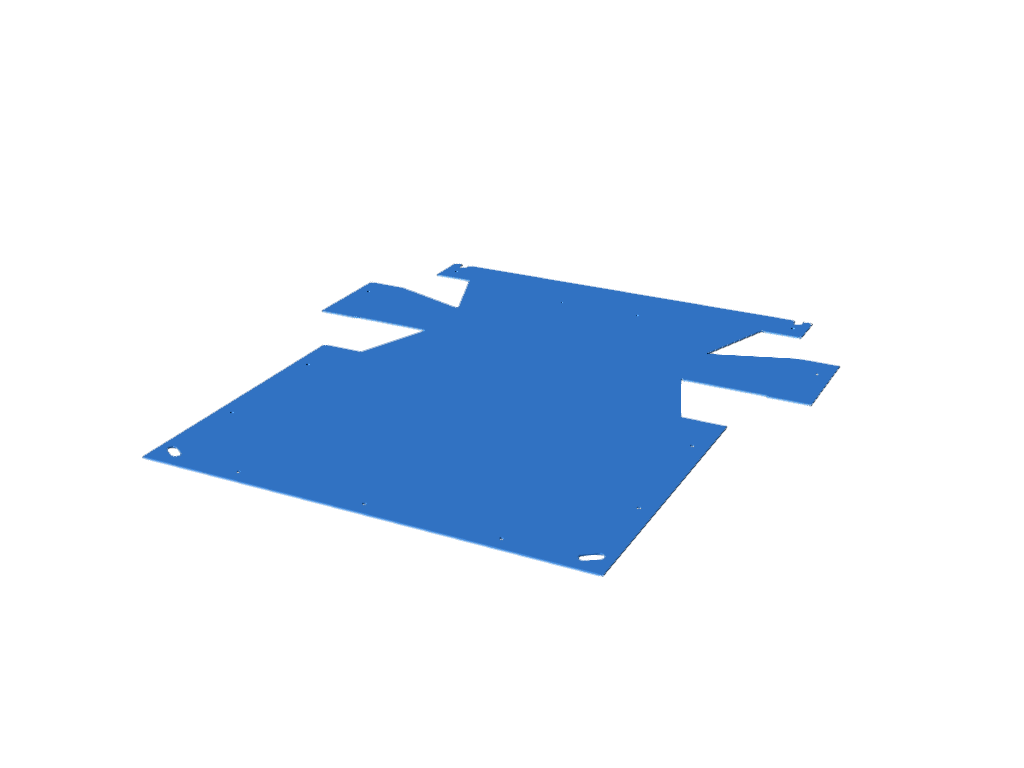

The side panel is made from 1018 Mild Steel sheet with thickness of 1 mm and finished with black powder coated paint. Bends are shown in PDF file and you also have 2 STEP files. One is finished part and the other one is flattened profile for cutting. Holes and other cuts are made 1 to 1 with original panel same as bending angles so that the original handle can fit in.

Let me know if this mod is interesting to be made for Core One L also.

You can find and download files here.
