Tools, APP Software Used etc.

OnShape

Description

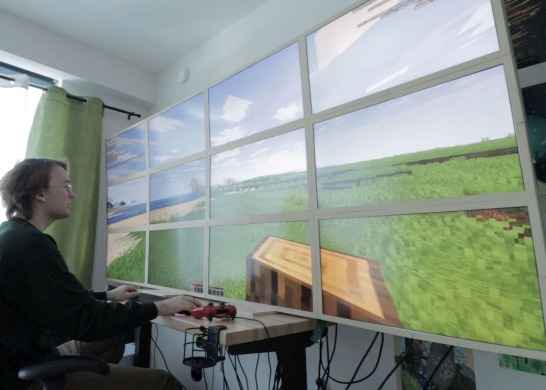

Building a modular monitor mounting system

I designed a sheet metal part that attaches to a monitor and allows them to be tiled to each other.

It is made using PCBWay's sheet metal fabrication from 3mm aluminum. I split the part into a flat back piece and a side rail piece so that they would be cheaper to ship with air freight. I attached the side walls to the flat back using rivets, in the precut holes I designed.

Overall the part was incredibly rigid, though I would redesign by mounting system because my bolt design is very slow to put together.

If you would like to see the whole process of building this monitor wall, here is my video about it:

https://youtu.be/QTJvFcx0DPE
