Apollo Command Module Control Panel Reproduction (Base Board)

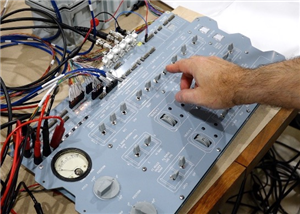

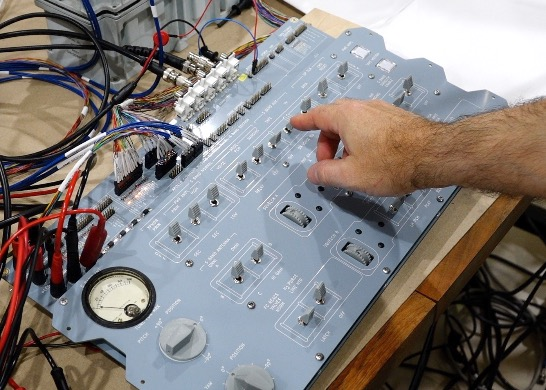

We made this functional replica of the Apollo control panel to exercise our Apollo communications setup. It consists of two boards, this is the base board. Since PCBWay projects did not allow for a second PCB in the same project (or I did not find out how to do it), the front board is in another project. This was made to accommodate 3 position switches I found for cheap on eBay, so you'll have to find your own that fit. The panel is reduced in size from the original for practicality. The Apollo-like paddles on the switches were 3D printed. See the panel in action in this video:
Apollo Command Module Control Panel Reproduction (Base Board)
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
