Amity Fin v1.0

Amity Fin v1.0

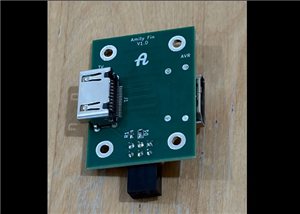

HDMI-CEC that works. Amity Fin is part of the open source Amity project for controlling your home theater with HDMI-CEC. Amity Fin is the only HDMI board that splices out the HDMI-CEC signal wire without disrupting the HDMI A/V signal, even at 4K@60Hz.

Code

Amity Fin KiCAD files

https://github.com/retsyx/amity/tree/main/hw/fin

Schematic and Layout

Schematic

schematic.pdf

CAD-Custom parts and enclosures

https://github.com/retsyx/amity/tree/main/hw/case

Download Gerbers Download BOM(Bill of materials)

Jan 23,2026

436 views

Amity Fin v1.0

HDMI board for Amity HDMI-CEC home theater control

436

1

0

Published: Jan 23,2026

Standard PCB

Download Gerber file 3

BOM(Bill of materials)

Purchase

Donation Received ($)

PCBWay Donate 10% cost To Author

Only PCB

PCB+Assembly

Project images are for reference only. Actual production is based on the manufacturing files on the project page. Please review the designer's notes (e.g., PCB thickness) and select the appropriate options. PCBWay is not responsible for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to Read More

Copy this HTML into your page to embed a link to order this shared project

Copy

Copyright Info

GNU - GPL License

Under the GNU - GPL License.
