Tools, APP Software Used etc.
|
|
servo motor |
|
|
|
Raspberry Pi Pico |
|
|
|
W2812B RGB LEDs |
Description
Christmas decoration: A winter village inside a rotatable Xmas tree

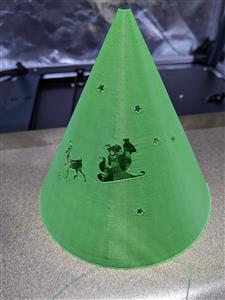

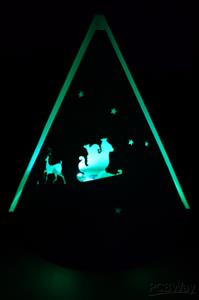

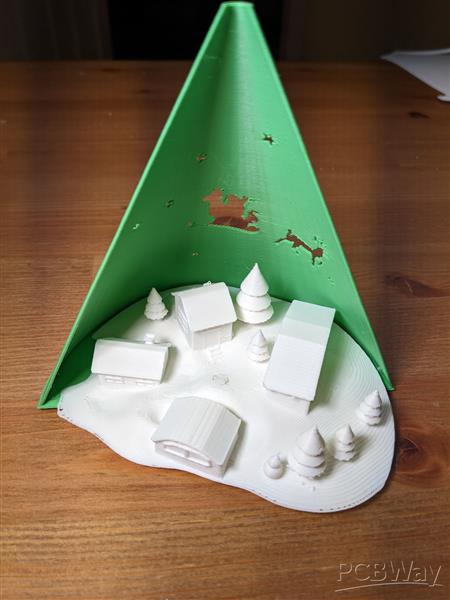

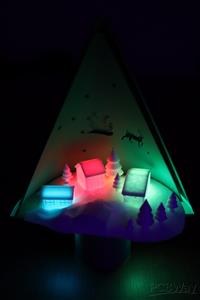

In this project you will build a lamp in the shape of a Christmas tree. The inside of the tree is a winter Chirstmas village lighted up by RGB LEDs. The tree can turn in one side to show the inside village or to the other side with Santa Claus and his reindeer.

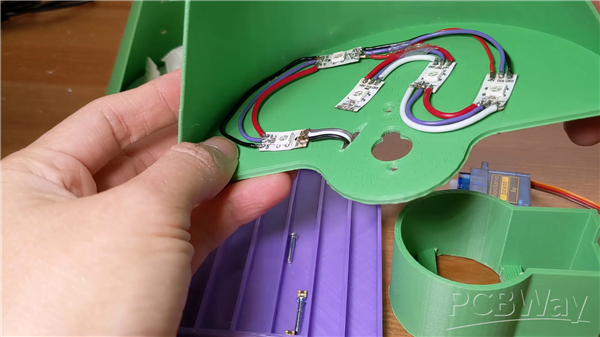

There are LEDs to light up the house
The movement of the tree is performed by servo motor that is controlled by the Raspberry Pi Pico
You can modify the code to control the light and the movement as you wish.
Happy Making!
Code
RP Pico code
main.py
RP Pico library for LEDs
neopixel.py
Schematic and Layout
RP Pico wirings
CAD-Custom parts and enclosures
3D printing files
VillageInTheTree.STL
Dec 23,2023
