ATARI ST MV16 Sound Audio Card Cartridge BAT Ubisoft for gaming and module trackers
Original Concept by:
Hervé Lange, Olivier Cordoléani (BAT, Ubisoft 1989)
Reinvented by:
DoG (Exxos Forum 2021)
Edoardo Auteri (Japan 2023)
BOM list, Centroid files, Schematic, Assembly drawings are provided.
Tested on ATARI ST and STe.
Main Characteristics:
- 12 bit (8 bits x 16 voices/channels) DAC converter with mono OAMP and 7.5kHz LPF.
- It uses the address bus to send the 12 bit sample for conversion.
- Address lines A1-A12 offsetted by the cartridge into available memory space.
Compatible with:
B.A.T.
B.A.T. II
Music Master
Some MOD-Players
Audio Sculpture
Digi Composer
TCB tracker
Noisetracker 1.5
Improvements:
- Reduced form factor.
- Higher noise immunity (ferrite beads and decoupling caps at the power rails, minimized routing and solid ground planes).

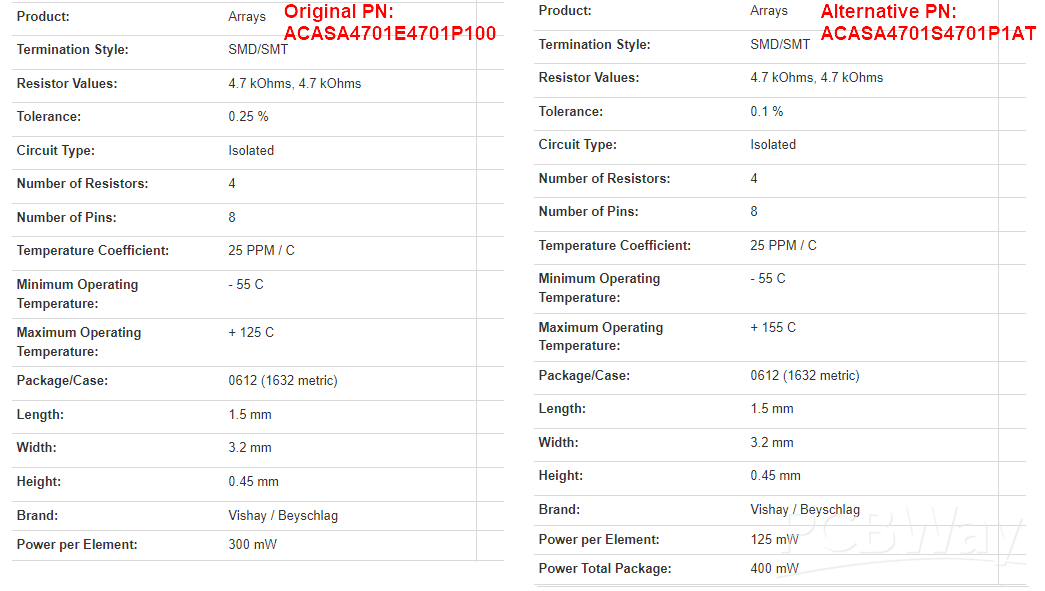

- Use of resistor networks at ±0.30% (including tolerance and matching ratio) for a better DAC linearity.
- Option to set 10X gain and bass boost for speakers and headphones.
Note: 2.5X gain is possible with C10 = 10uF + 1.2KΩ resistor (to mount on GAIN/BOOST selector 1-2 position).
- R4 and C11 get connected in
series to give a special
bass effect. Also, the output
gain relies on a bass frequency.
In this case, a 25dB gain
equates to 100Hz, and a
19dB gain equates to 2kHz.
Note: R4 can be either 10KΩ and 100KΩ
for achieving an intense bass boost.
- R3 and C9 enhance a
high-frequency load,
providing stability.
- C13 filters radio interference
picked up by the audio input
connection.
Audio sample (CODE) in the attachment. First half, YM output. Second half, reMV16 output.
