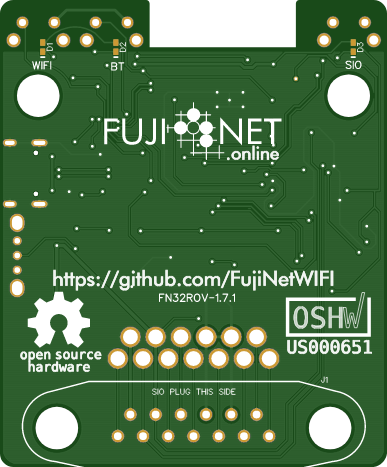

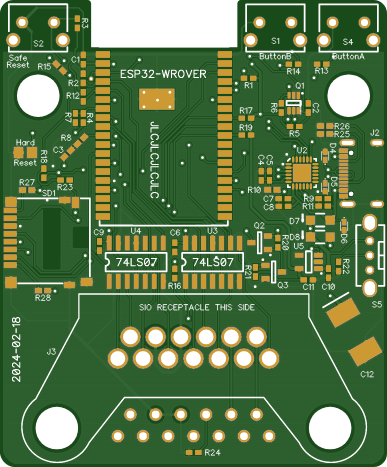

ATARI FujiNet FN32ROV-1.7.1
See https://github.com/FujiNetWIFI/fujinet-hardware/tree/master/ATARI/FN32ROV-1.7.1
This version is complete despite the SIO plug and receptacle. You have to manufacture them by yourself:
The plug uses https://www.digikey.de/de/products/detail/te-connectivity-amp-connectors/7-745288-2/1123892 and the receptacle uses https://www.digikey.de/de/products/detail/amphenol-sine-systems-corp/AT60-202-2031/5227530 as single pins/connectors which can then be used together with the 3D printed plug (https://github.com/FujiNetWIFI/fujinet-hardware/blob/master/ATARI/FN32ROV-1.7.1/3D/FujiNet%20v1.6%20Plug.stl) and receptacle (https://github.com/FujiNetWIFI/fujinet-hardware/blob/master/ATARI/FN32ROV-1.7.1/3D/FujiNet%20v1.6%20Receptacle.stl) and soldered to the board.
