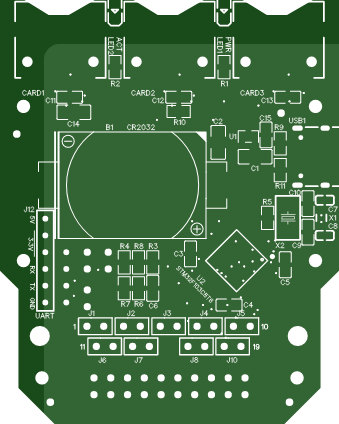

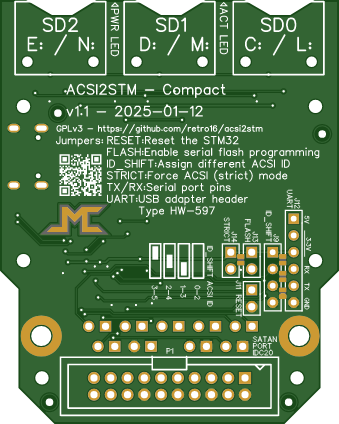

ACSI2STM: Atari ST hard drive emulator (compact version 1.1)
This project is a hard drive emulator for your Atari ST using an inexpensive STM32 microcontroller and a SD card. The PCB attaches directly on the DB19 port at the back of your ST. The PCB has 3 microSD card slots, and the code supports up to 5 SD card readers.
See https://github.com/retro16/acsi2stm for details.
