underwater_drone V2

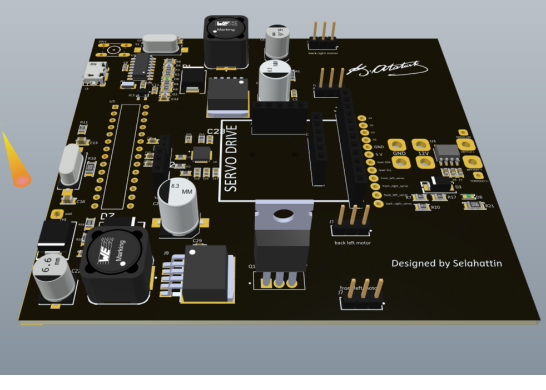

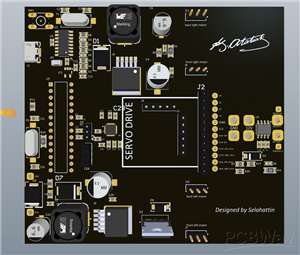

This is a fully functional underwater drone of my own design. Unlike standard designs, it utilizes four motors and four servos for movement and features a design that allows for the adjustment of the vehicle's underwater balance. Improvements over the previous version include active outputs for all pins on the chip, a correction to the GND line in the ESC pin connections, and diode protection for feedback on the 8.4-volt output line. Additionally, the board includes designs for current and voltage sensors; you can use the other sensors and available pins according to your own requirements.
You can find the installation video below.
underwater_drone V2
