Description
underwater_drone
My own designed and also working underwater drone. Different from general designs, it is a design that provides movement with 4 motors and 4 servos and allows us to adjust the density of the vehicle in the water. I leave the youtube link below
Aug 19,2025
95 views
underwater_drone

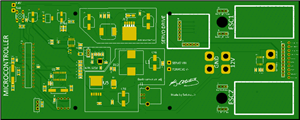

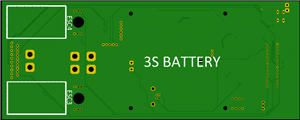

The card of the underwater drone I designed
95
0
0
Published: Aug 19,2025
