KiCad 9.0 |

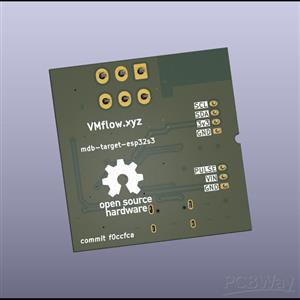

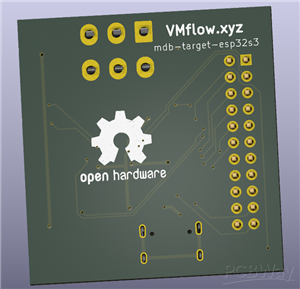

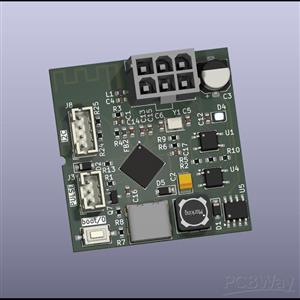

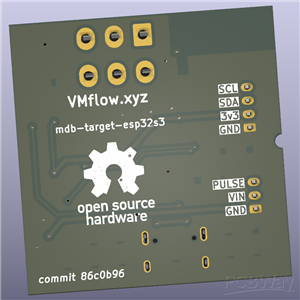

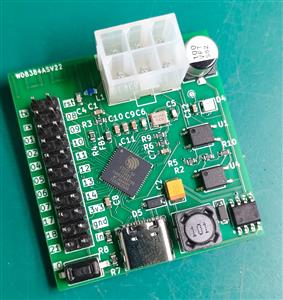

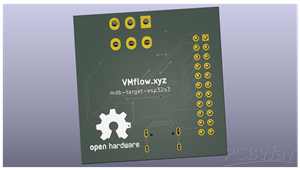

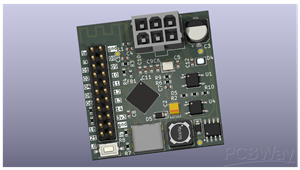

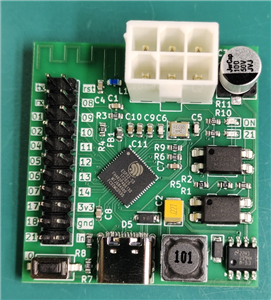

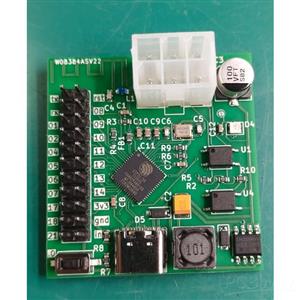

MDB ESP32 Cashless Device
Multi-Drop Bus (MDB) Vending Machine Telemetry and Payment Module
This is an open source project dedicated to implementing the MDB (Multi-Drop Bus) protocol for cashless vending machines, using ESP32 as the main platform and KiCad for PCB design. The MDB protocol is widely used in vending machines for communication between devices, enabling integration with cashless payment systems.
- I2C bus for expansion and peripheral integration
- Pulse I/O interface for compatibility with traditional coin/bill systems
- Addressable RGB LED for real-time visual status indication (e.g., connectivity, errors, transactions)
This project is part of the VMFlow ecosystem, aiming to standardize and simplify the development of modern, connected vending solutions.
GitHub
https://github.com/nodestark/mdb-esp32-cashless
Youtube
https://www.youtube.com/shorts/wKaXX6SeWW8
VMflow
Google Play
https://play.google.com/store/apps/details?id=xyz.vmflow.target

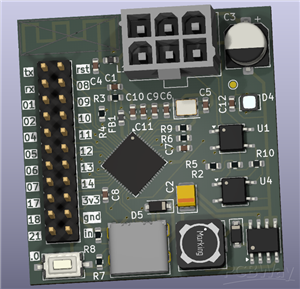

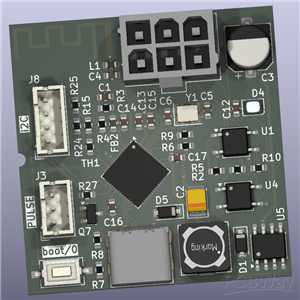

MDB ESP32 Cashless Device
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
