Components
|
|
CC1101 868mhz modul (green) either this or the ebyte one |
x 1 | |
|
|
ebyte e07-868ms10 (red) either this or the green one |
x 1 | |
|
|
esp32 ( Wemos D1 Mini variant ) |
x 1 |
Description
esp32 Pricetag Access Point PCB

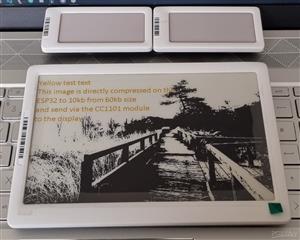

This project is a simple PCB for the E-Paper pricetag AP firmware if wrote, this enables the control of a full set of models from an Electronic Shelf Label manufacturer with their stock firmware running.
Please see the linked github repo for more details on the supported models

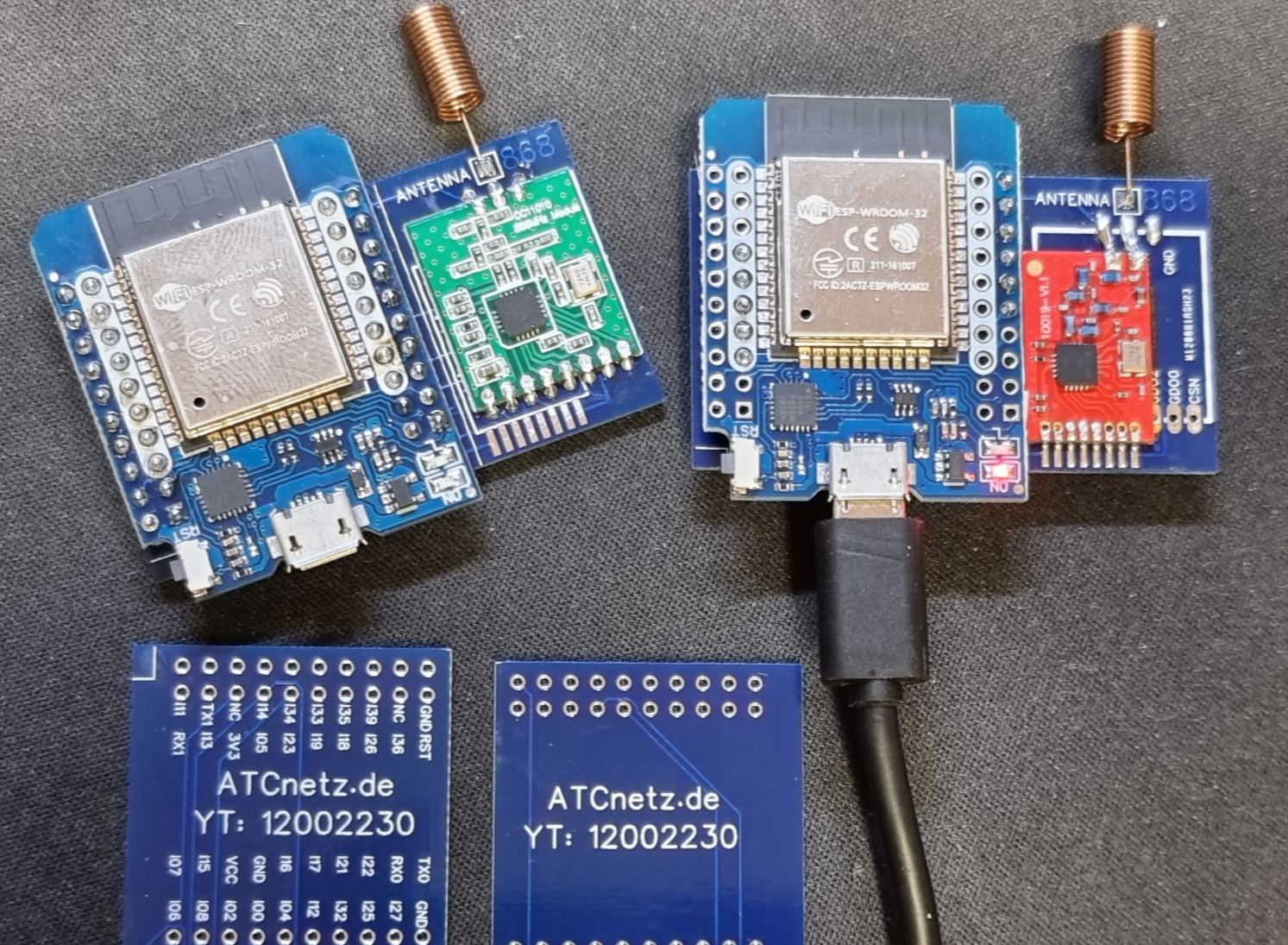

The pcb can either be used with the ebyte or the "green" cc1101 module, it needs to be the 868mhz version
To see an example of this project please watch this: https://youtu.be/p4wd8amFLck
Code
https://github.com/atc1441/E-Paper_Pricetags
Apr 04,2021
6,190 views
esp32 Pricetag Access Point PCB
Simple PCB to get the esp32 to drive the CC1101 RF module for the E-Paper pricetag Access Point firmware going
6190
9
0
Published: Apr 04,2021
Standard PCB
Download Gerber file 63
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
