4

Components

	M29F160FT55N3E2 Alliance Memory	x 2

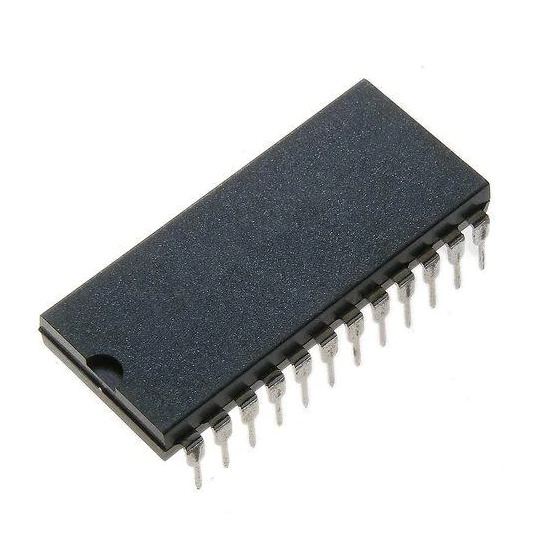

	ATF22V10C-7PX Microchip	x 1
	ATF16V8B-15SU Microchip	x 1
	C0805C104M3RAC7210 KEMET	x 4
	MHSS1105 Apem	x 1

Tools, APP Software Used etc.

XCartFlasher

GienekP

Description

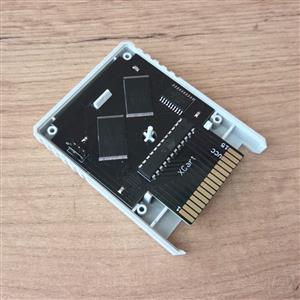

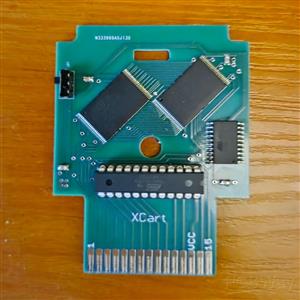

XCart - 4MB ATARI XE/XL Cartridge

XCart - ATARI XE/XL cartridge compatible with MegaCart 4MB (code 63) with small differences (*).

A bank-switched cartridge that occupies 16 KB of address space between

$8000 and $BFFF. It is controlled by a byte written to $D500-$D5FF. Values

0-254 select one of the first 255 banks, and the value 255 disables the

cartridge. Bank 255 is not available.

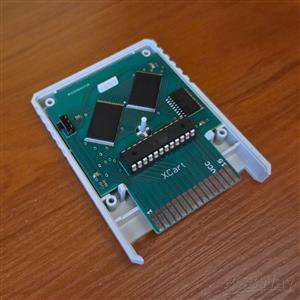

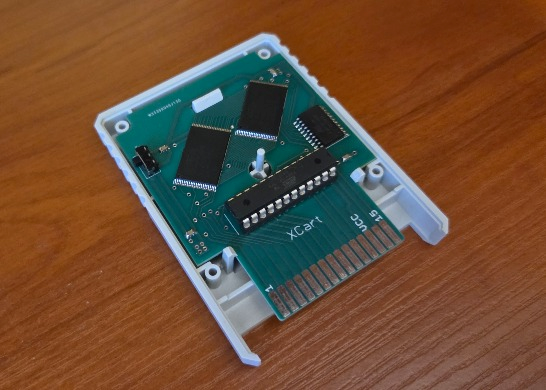

PCB compatible with SikorSoft enclosures.

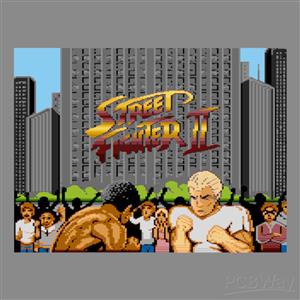

Cartridge dedicated to "Street Fighter 2" ;)

(*) Differences:

Mega: write to $D500-$D51F; XCart: write to $D500-$D5FF

Mega: one memory chip; XCart: two memory chips (use XCart flasher)

Mega: read $D500-$D51F give last value; XCart read $FF

Mega: start bank 254, XCart start bank 0

Code

GALs JED files

GALs.7z

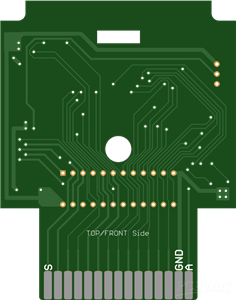

Schematic and Layout

Schematic file

XCart_SCH.pdf

Download BOM(Bill of materials)

Oct 11,2025

597 views

XCart - 4MB ATARI XE/XL Cartridge

2 Layers PCB 75.6 x 59.6 mm FR-4, 1.6 mm, 1, Immersion gold, Black Solder Mask, White silkscreen

ATARI XE/XL cartridge compatible witch MegaCart 4MB (code 63)
