SST39SF040-70-4C-PHEMicrochip Technology
|
x 1 | |
|
ATF22V10C-10PUMicrochip
|
x 1 | |
|

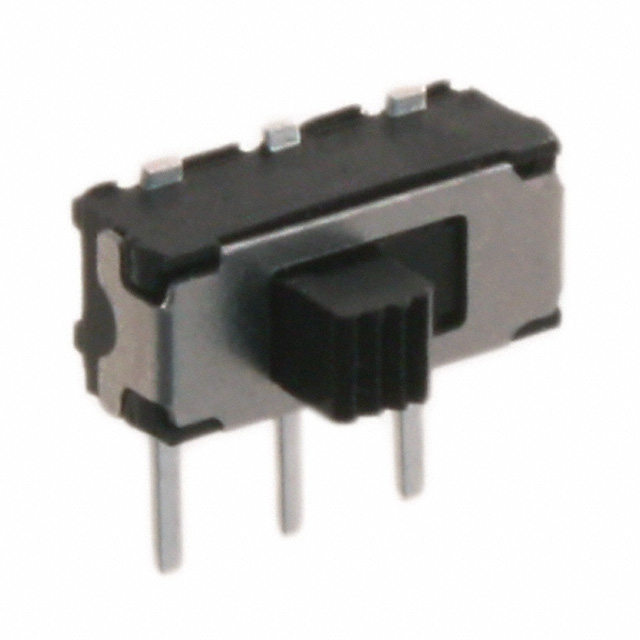

MHSS1105APEM Inc.
|
x 1 | |
|
|
100nFVishay / BC Components
|
x 1 | |
|
|
1N4004 (DO-41)Any
|
x 1 |
DCart ($D5XX)
DCart - writable cartridge for ATARI XE/XL computers.
The cartridge is compatible with Maxflash8_512kB & J(atari)Cart512(kB). SpartaDOS X works very well.
This bank-switched cartridge occupies 8 KB of address space between $A000 and $BFFF. The cartridge memory is divided into 64 banks, 8 KB each. The six lowest bits of the ADDRESS written to $D500-$D5FF select the bank mapped to $A000-$BFFF, bit 7 disables the cartridge. Bit 6 is ignored.
On the $D500 - $D5FF always you can read code from bank (Also when the bank is turned off.). It is mirror from $B500 - $B5FF.
Diode - allows you to use several cartridges in parallel. In addition, it allows HardReset.
