first ever PCB design, have wanted to design and make my own PCB and also wanted a macro pad for ages, "very simple" design using an esp32 ttgo as a processor, screen and power source wired to a computer, is meant to be housed in a 3d printed case which i havent designed as of yet :D (also havent tested the board yet so pls check over it yourself first if this message is still here :> )
Jun 12,2025
244 views
MacroPad.kicad_pcb
2 Layers PCB 61 x 109.2 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen

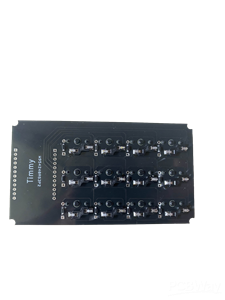

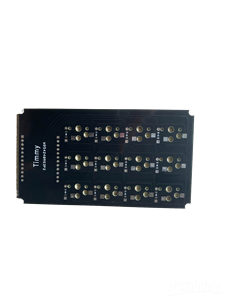

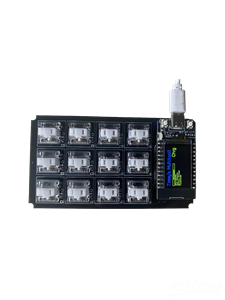

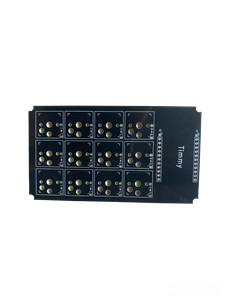

first ever PCB design, 4x3 MacroPad, parts: 1x ESP32 TTGO t-display board, 12x choc low-profile switches,12x hot-swap sockets, 12x 1N4148
