Description

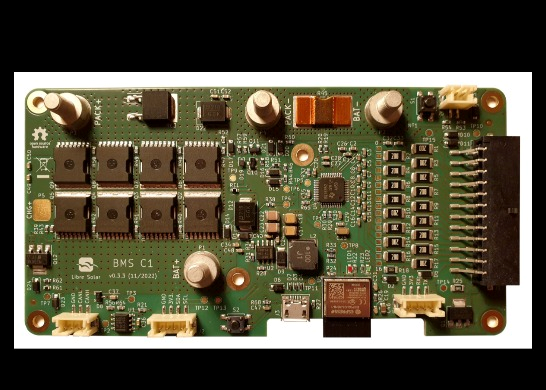

Gerber_bms-c1_2026-07-05

Fitur

3 hingga 16 sel Li-ion yang disusun secara seri

Arus kontinu: 70-100A (tergantung pada MOSFET dan heat sink yang digunakan)

Jenis sel: LiFePO4, Li-ion NMC dan lainnya (dapat disesuaikan)

Pengukuran

Tegangan sel

Tegangan kemasan

Arus kemasan

Paket (2x) dan suhu MOSFET

Berdasarkan Texas Instruments bq76952

Sakelar MOSFET sisi tinggi terintegrasi dan sensor arus

Mikrokontroler Espressif ESP32-C3

Antarmuka komunikasi:

BISA

USB (CDC-ACM dan JTAG)

USART

I2C

Bluetooth Low Energy

WiFi

Fitur perangkat keras

PCB 4 lapis

Terminal sekrup M5

Pendingin panas di sisi belakang

Aplikasi

Penyimpanan di luar jaringan listrik

Kendaraan listrik ringan (LEV)

Download Gerbers Download BOM(Bill of materials)

Jul 06,2026

11 views

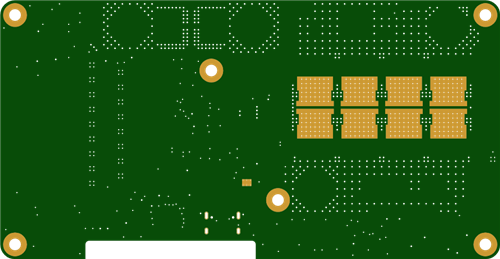

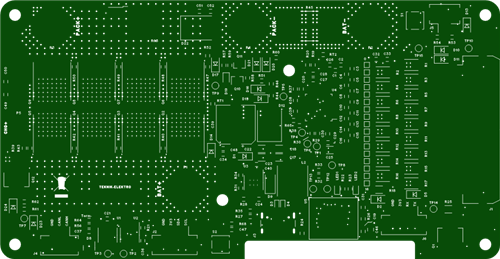

Gerber_bms-c1_2026-07-05
