W723878AS1K26_PLC_2560.kicad_pcb

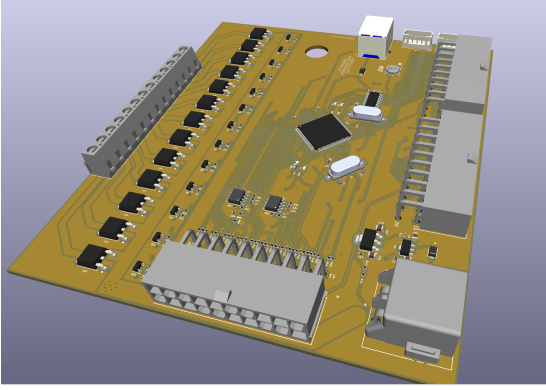

It's a custom ATMEGA2560 Based programable logic control board for analog cars automation.It provides the capabiloty of PWM Load control upto 150W at 13 channels and analog sampling for various sensors.
Further feel free to contact +92-3499135368 on Whatsapp for details.
Nov 22,2025
109 views
W723878AS1K26_PLC_2560.kicad_pcb
2 Layers PCB 124.866 x 143.888 mm FR-4, 1.6 mm, 1, HASL with lead, White Solder Mask, Black silkscreen
A Creative way to take control of you Vintage Cars.
