Description
BioLogic - CADCAM

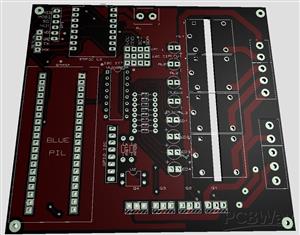

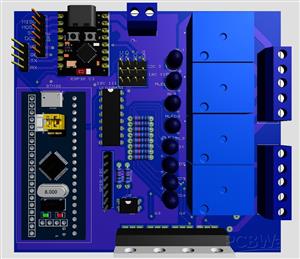

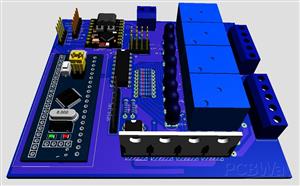

The BioLogic board is a product that integrates an STM32 Bluepill and an ESP32 C3 SuperMini controller. It is designed to operate as a PLC programmed using Arduino language. It includes a dedicated library for the board; you simply need to download it in the Arduino IDE and start programming. For more information, contact the Instagram account: @teoriademau.
Code
Arduino Library Here
https://drive.google.com/file/d/1Uq_l0jaq_nQ8IuTlMkj25sPhJ5uTH8AF/view?usp=sharing
Dec 18,2025
1,051 views
BioLogic - CADCAM

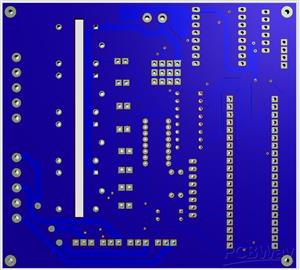

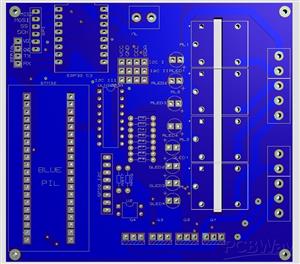

2 Layers PCB 86.6 x 95.2 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen
BioLogic board combines STM32 Bluepill & ESP32 C3 SuperMini. Works as an Arduino-programmable PLC. Library included. Contact @teoriademau ig
1051
1
1
Published: Dec 18,2025
Standard PCB
Under the
Attribution-NonCommercial-NoDerivs (CC BY-NC-ND)
License.
