This project is a Cassette Control Board designed using digital logic components. The circuit controls the operation of a cassette mechanism such as play, stop, and motor control using logic ICs and switching components.
The main objective is to design a reliable and compact PCB that can manage control signals efficiently in an embedded system.
the circuit is built around a flip-flop IC (CD4013) which stores and toggles states based on input signals.
When a control signal (button press) is given:
The flip-flop changes state
This controls outputs like motor ON/OFF
Logic gates are used to ensure proper switching conditions
Transistors are used to drive external loads like motors

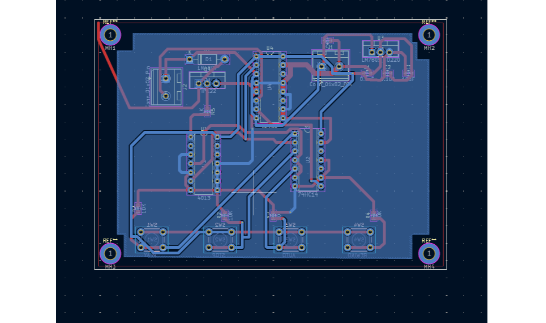

The PCB integrates:
Power supply section
Control logic section
Output driver sectiont
