Tiny Volumetric Lamp

Wireless power transfer coils: https://aliexpi.com/WLjw

DC motor: RF-300EA-1D390, or any motor with a diameter 24mm.

Any 0603 smd LED works with Vf < 2.5 V at 10mA.

Use grey goo to glue all parts together (2 component epoxy :D), as well as soldering.

CAD-Custom parts and enclosures

3D printed case

MotorHolder.STEP

Aug 06,2025

617 views

Tiny Volumetric Lamp

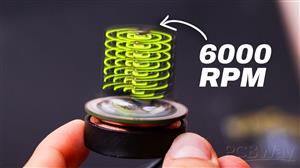

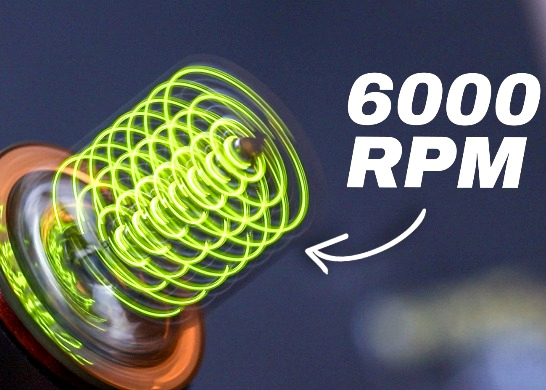

A Tiny Volumetric Lamp using 3D-printed components and a bit of magic. The lamp is wirelessly powered and can spin quite fast :)
