Si4732 Mini & ATS-20+ Hybrid Front Panel

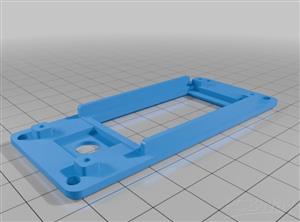

A front panel that can be used to combine the Si4732 Mini and the ATS-20+ to create a receiver that is the best of both!

No supports needed when printing. You will need 4 x M2 self-tapping screws to screw the PCB to this front panel. If you don't have any, you can cut the original case screws of the Si4732 Mini radio down to length (around 5mm in length).

Refer to my YouTube video for step-by-step instructions....

https://youtu.be/OyrTHNhbh58

Note! that PCB Way will offer a number of shipping options. This makes big impact on the overall price, so choose with care.
