SeedSigner Plus Display Hat

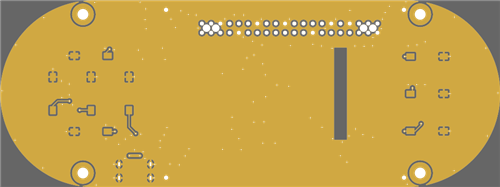

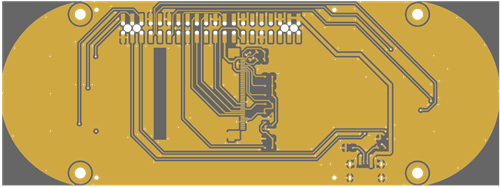

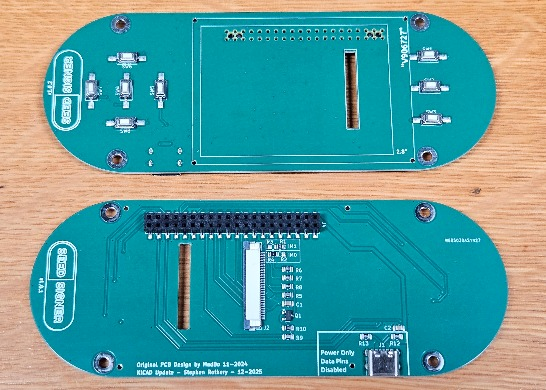

A PCB for a SeedSigner Plus display hat.
Needs to be paired with a 2.8 inch ST7789 display, with 40p connector. (Part number HP28008, you generally want the IPS, non-touch variant)
This design is a Kicad version of the original plus hat which was made in design spark. (It also has a few changes that make it easier to manufacture, etc, 6p USB-C plug)
SeedSigner Plus Display Hat
