SMALL INDEPENDENT MOBILE ACTUATOR (SIMA)

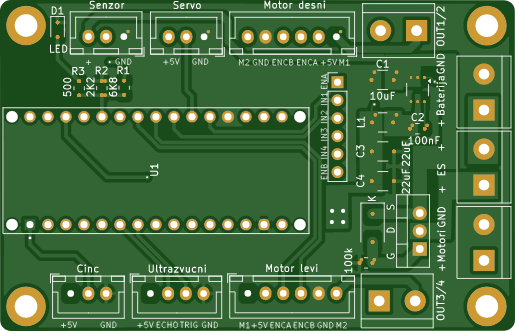

This PCB consist of 2 DC motor plug-ins, one IR sensor for detecting the opponent, one ultrasonic sensor, one connector for small servo motor, and socket for the Arduino Nano. This PCB works with L298N dual DC motor driver in pair. It also has a reverse polarity protection circuit.
Mar 23,2025
363 views
SMALL INDEPENDENT MOBILE ACTUATOR (SIMA)

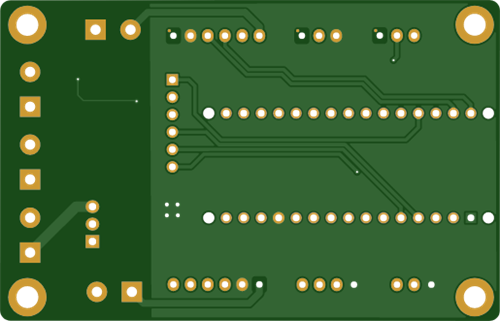

2 Layers PCB 46.8 x 72.7 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
PCB that runs SIMA robots with 2 DC motors and Arduino Nano.
363
0
0
Published: Mar 23,2025
Standard PCB
Download Gerber file 0
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/03/26 (GMT+8)
File update record
2025-03-2617:51:38
Gerber file is updated.
2025-03-2603:33:19
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
