Description
SC-3000 GAME CART 32K

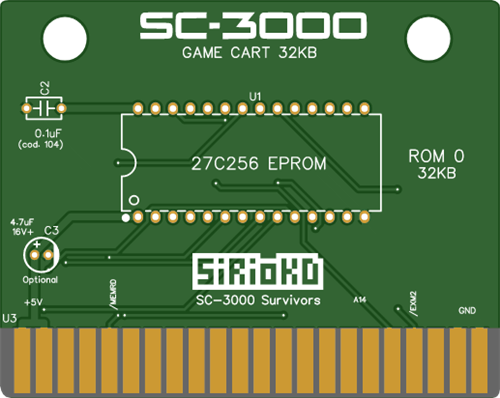

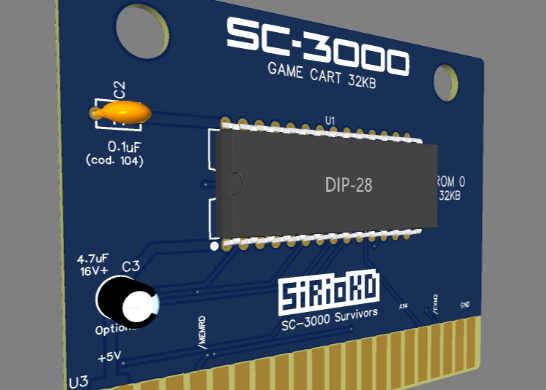

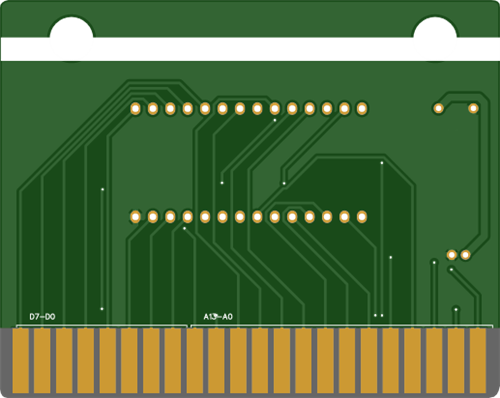

This is a PCB specifically made to generate cartridges for the Sega SC-3000, SG-1000 and I believe also the Sega Mark III and Sega Master System (Japanese). It uses the standard 27C256 32KB EPROM. Nothing else is needed. The 0.1uF disc capacitor is the standard 25% tolerance 16V (even 25V) one used in almost all electronics of the time.
Apr 10,2025
406 views
SC-3000 GAME CART 32K
Sega SC-3000 and SG-1000 Standard tiny 32KB game cart.
406
2
0
Published: Apr 10,2025
Standard PCB
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial (CC BY-NC)
License.
