SBP Routing Board V1.1
This is a routing board for a Self balancing Platform project. A TivaC Microcontroller is mounnted on the PCB so the GPIO can be routed to modules that are either soldered onto the PCB or externally wired (HC-05 BT Module, MPU6050 IMU Module, L298N H-Bridge Module). This routing board, the supporting modules, 2 motors, and a 7.4V battery will be mounted on a 3D printed chassis to create a self balancing platform controlled by a lightweight custom RTOS running on the TivaC launchpad.
Schematic and Layout
SBP_Routing_Board_v1.1_schematic.pdf
SBP_Routing_Board.net
Sep 12,2025
185 views
SBP Routing Board V1.1

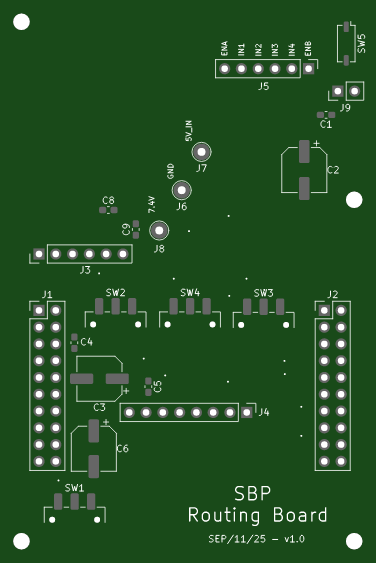

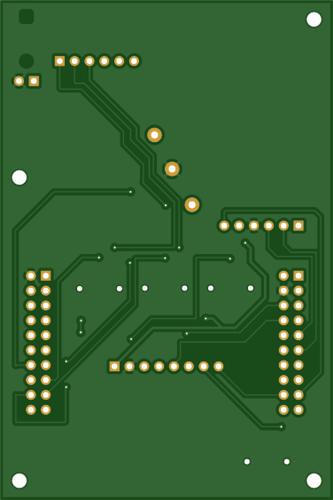

This board routes GPIO from the TivaC launchpad to HC-05 BT Module, MPU6050 IMU Module, & L298N H bridge module.
